PDSB-125

PDSB-125

NEXCOM
SKU: 55641300

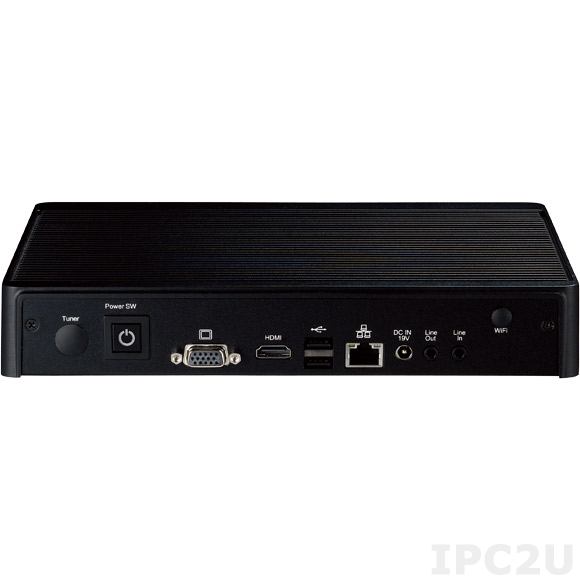

Network Digital Signage Player with Intel Atom D525 1.8GHz CPU, 2GB DDR3 RAM, 320GB HDD, VGA/HDMI, Audio, GB LAN, 4xUSB, Linux OS
End-of-life product

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
Intel Atom D525
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
10/100/1000 Mbit/s
1
Interfaces
USB Total
4
USB 2.0
4
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
64 GB
Connectors
Connectors
DB15 VGA, HDMI, RJ45 Ethernet, 4xUSB, Line Out, 12V DC Output
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
250.5 mm
Height
40 mm
Depth
195 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.7 kg
Gross Weight
3 kg

Documentation
PDSB-125
