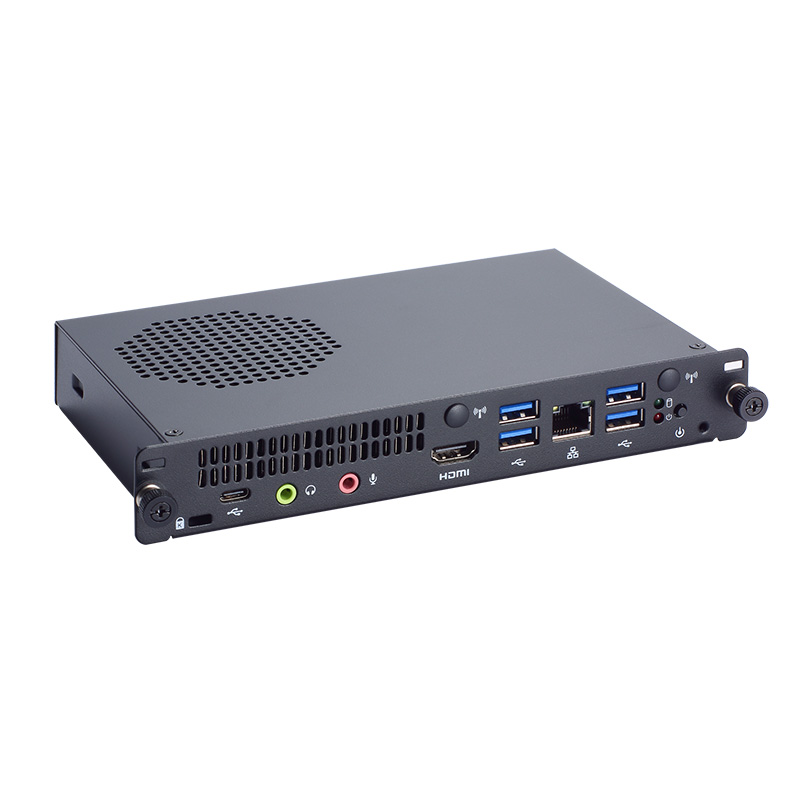

OPS530-I5-WTPM-1235U
AXIOMTEK
SKU: 80126600
OPS Digital Signage Player, Intel Core i5-1235U CPU, 2xDDR4 SO-DIMM, HDMI, 1xGbE LAN, 1xUSB-C, 4xUSB 3.2, Audio, 1xM.2 Key-M, 1xM.2 Key-E, 12/19VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, 19" Rackmount
Type
Fan
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
FCBGA1744
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
5
USB v3.x
5
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
HDMI, RJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, USB type C, JAE TX25A (OPS)
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
200 mm
Height
30 mm
Depth
119 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
