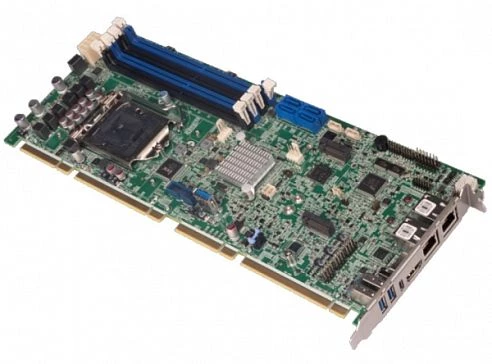

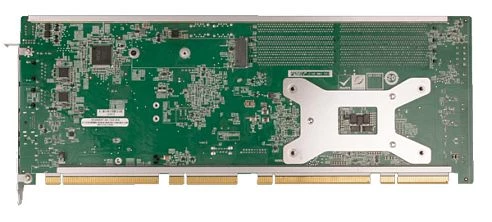

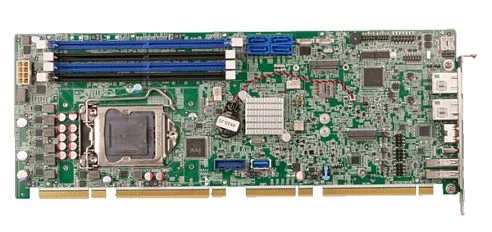

PCIE-Q470
IEI
SKU: 09600400
Full-size PICMG 1.3 CPU Card supports LGA1200 Intel 10th/11th Gen. Core i9/i7/i5/i3/Pentium/Celeron CPU with Q470E, DDR4, HDMI, Type-C DP, Dual Intel 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHS
Price on request
Available
Available
System Architecture
Form Factor
Full Size PICMG 1.3
CPU
СPU Generation/Family
Comet Lake, Rocket Lake-S
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1200
Chipset
Chipset
Intel Q470E
Memory
Form-factor
DDR4
Socket Type
4xDIMM
Maximum Memory
128 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
12
USB 2.0
6
USB v3.x
6
Drive interfaces
RAID Levels
1, 5, 10
M.2
1
Extension Slots
SIM Card slots
1
M.2
3
Connectors
Internal Ports
4xCOM, 4xSATA 3, 6x4-pin USB 2.0, USB 3.0
Connectors
HDMI, 2xRJ45 Ethernet, 2xUSB, USB type C
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
338 mm
Length
126 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
1.1 kg
Gross Weight
1.1 kg
