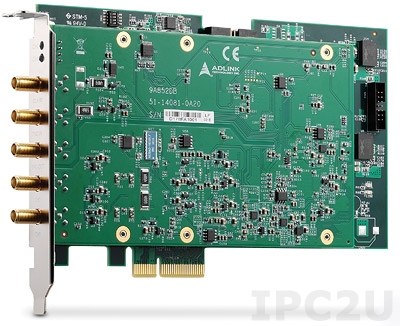

PCIe-9852

PCIe-9852

SKU: 06341200

200 MS/s 14-Bit 2-CH High-Speed PCI Express Digitizer

Price on request

System Architecture

System Bus

PCI-Express x4

Analog Input

Total channels of analog input

2

Single-Ended channels

2

Number of Bits

14 Bit

Sampling rate

200000000 Hz

Voltage range

+/-10 V, +/-2 V

Connectors

Connectors

Pin Header

Software

Operating System Compatibility

Windows XP, Windows 7, Windows 8, Linux OS

Development Software

LabVIEW, Visual Studio .NET, MATLAB

Operating Conditions

Operating Temperature

0..55 °C

Dimensions

Net Weight

0.12 kg

Gross Weight

0.46 kg
