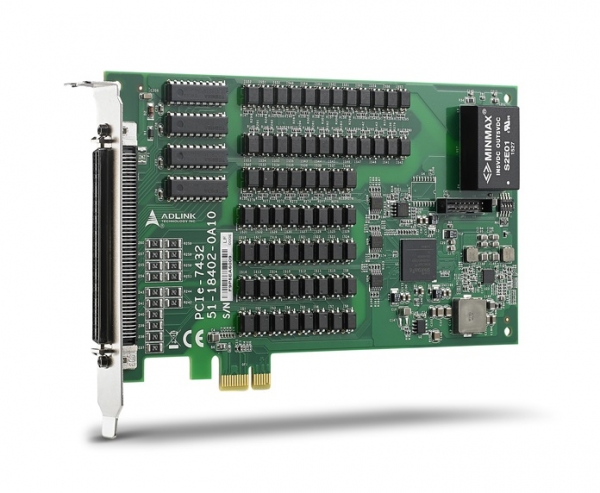

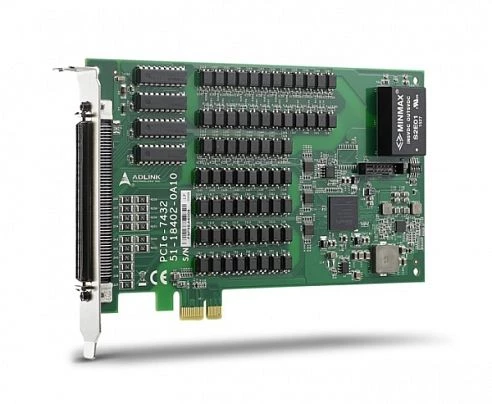

PCIe-7432
ADLink
SKU: 08057700
32-CH digital input and 32-CH digital output card that provide a robust 2500V isolation protection
Price on request
Available
Available
System Architecture
System Bus
PCI-Express x1
Digital Input
Total channels of digital input
32
Isolation of Digital Input
2500 V
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~1.5 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
32
Type
Open collector
Output voltage
5~35 V
Max. load current
500 mA
Connectors
Connectors
100-pin SCSI II Female
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB, AD-Logger, DAQBench
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.12 kg
Gross Weight
0.46 kg
