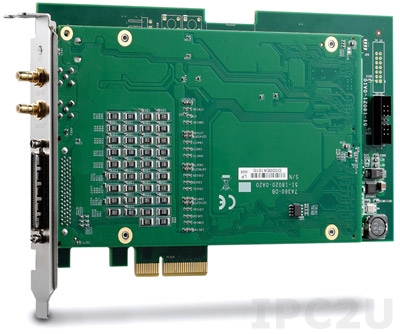

PCIe-7360
ADLink
SKU: 06549900
PCI Express 100 MHz 32-CH High-Speed Digital I/O Card
Price on request
Available on order
Available on order
System Architecture
System Bus
PCI-Express x4
Digital Input
Total channels of digital input
32
Type
Wet contact
Sink/Source
Sink
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
0~5 V
Max. load current
32 mA
Connectors
Connectors
68-pin SCSI VHDCI
Software
Operating System Compatibility
Windows XP, Windows 7, Windows 8, Linux OS
Development Software
LabVIEW, Visual Studio .NET, MATLAB
Operating Conditions
Operating Temperature
0..55 °C
Dimensions
Net Weight
0.12 kg
Gross Weight
0.48 kg
