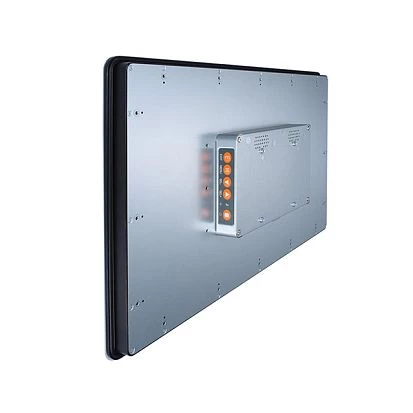

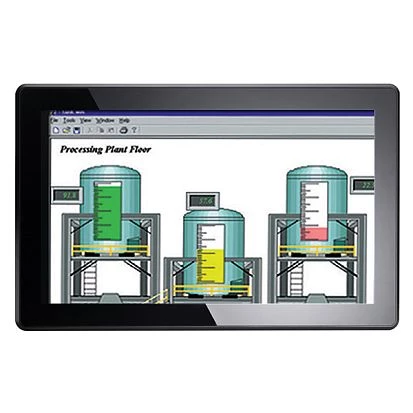

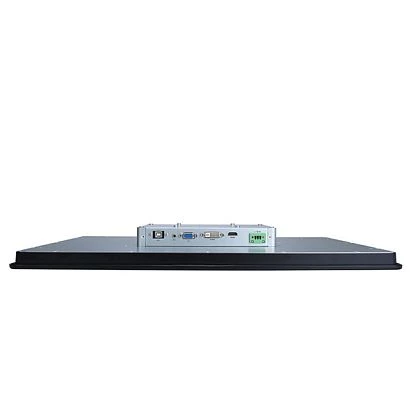

P6217WPC-24VDC-U
AXIOMTEK
SKU: 07265900
21.5" TFT LCD monitor, IP65 for front panel, Full HD 1920x1080, projective capacitive touchscreen, VGA, DVI-D, HDMI, Line in, power supply 24V DC
End-of-life product
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4, NEMA 12
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Input Interface
HDMI, VGA, DVI-D
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
KeyPad
Connectors
Connectors
DVI-D, DB15 VGA, HDMI, Line In, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
547.59 mm
Height
339.05 mm
Depth
53 mm
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
8 kg
Gross Weight
10 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4, NEMA 12
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Input Interface
HDMI, VGA, DVI-D
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
KeyPad
Connectors
Connectors
DVI-D, DB15 VGA, HDMI, Line In, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
547.59 mm
Height
339.05 mm
Depth
53 mm
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
8 kg
Gross Weight
10 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4, NEMA 12
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Input Interface
HDMI, VGA, DVI-D
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
KeyPad
Connectors
Connectors
DVI-D, DB15 VGA, HDMI, Line In, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
547.59 mm
Height
339.05 mm
Depth
53 mm
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
8 kg
Gross Weight
10 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4, NEMA 12
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Input Interface
HDMI, VGA, DVI-D
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
Controls
KeyPad
Connectors
Connectors
DVI-D, DB15 VGA, HDMI, Line In, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
547.59 mm
Height
339.05 mm
Depth
53 mm
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
8 kg
Gross Weight
10 kg
