P6191PR-DC-U-V3
AXIOMTEK
SKU: 07623000

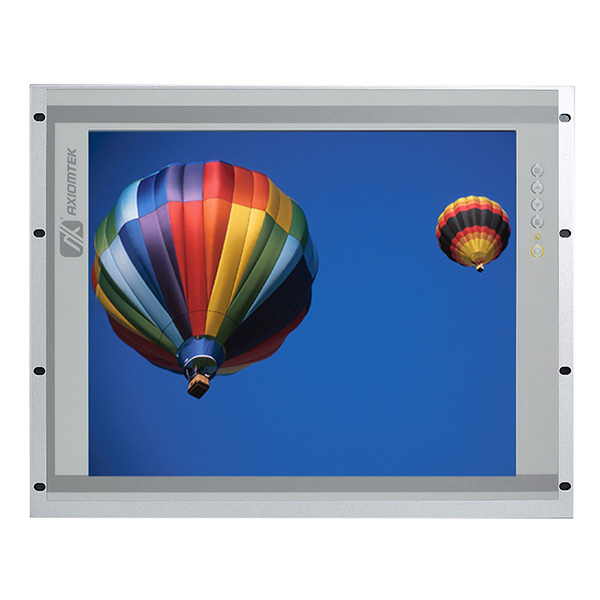

19" TFT 350 nits SXGA LCD, 1280x1024, resistive touch screen (USB), 1xVGA, 1xDVI, 1xHDMI, 24VDC-in, IP65 (NEMA4/12) Front
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65, NEMA 4, NEMA 12
Material Front Side (Panel)
Heavy-Duty Steel
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Input Interface
HDMI, VGA, DVI-D
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
1xOn/Off LED
Controls
Control Buttons
Connectors
Connectors
DVI-D, DB15 VGA, HDMI, 1xUSB, Line In, DC Input
System Power Input
Input Voltage DC
12..24 V
Power Consumption
17 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
482 mm
Height
380 mm
Depth
55 mm
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
9.46 kg
Gross Weight
13.5 kg
