P6171PR-DC-U-V3
AXIOMTEK
SKU: 09572600

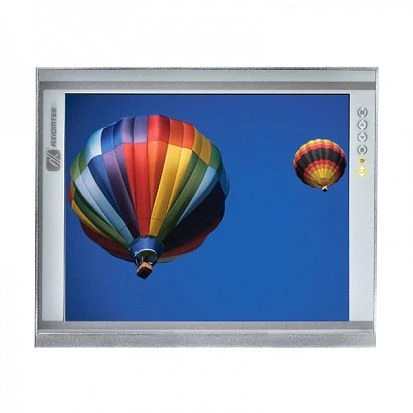

17" TFT LCD monitor, IP65 for front panel, 1280x1024, resistive touchscreen, VGA, Display Port, HDMI, Line in, DC input
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100, Arm
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Input Interface
DisplayPort, HDMI, VGA
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
DB15 VGA, HDMI, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
410 mm
Height
338.3 mm
Depth
58 mm
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
4.45 kg
Gross Weight
6.71 kg
