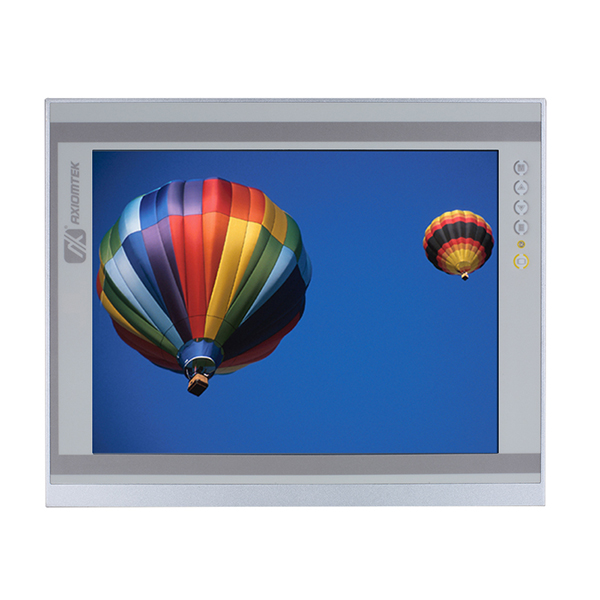

P6121PR-DC-U-V3
AXIOMTEK
SKU: 07273900
12.1" TFT 500 nits XGA LCD, resistive touch screen (USB), 1024x768, 1xVGA, 1xDVI-D, HDMI, power supply 24V DC
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65, NEMA 4, NEMA 12
Material Front Side (Panel)
Heavy-Duty Steel
Display
Display Type
LCD TFT
Diagonal
12 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
500 Cd/m2
Contrast Ratio
700~1
Input Interface
HDMI, VGA, DVI-D
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
1xOn/Off LED
Controls
Control Buttons
Connectors
Connectors
DVI-D, DB15 VGA, HDMI, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..55 °C
Dimensions and weight
Width
377.9 mm
Height
309.3 mm
Depth
24.95 mm
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
5 kg
Gross Weight
7 kg
