OPS300-310-N3350

OPS300-310-N3350

AXIOMTEK
SKU: 56391800

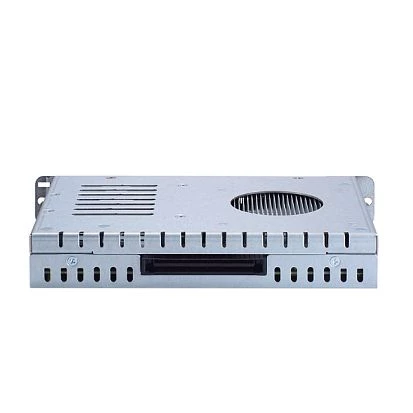

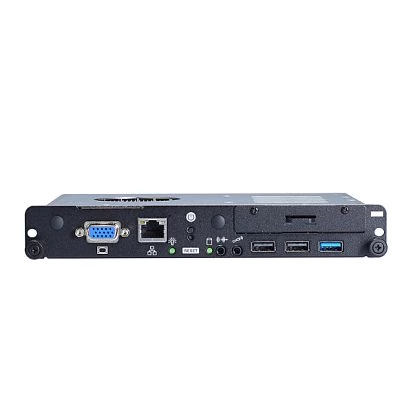

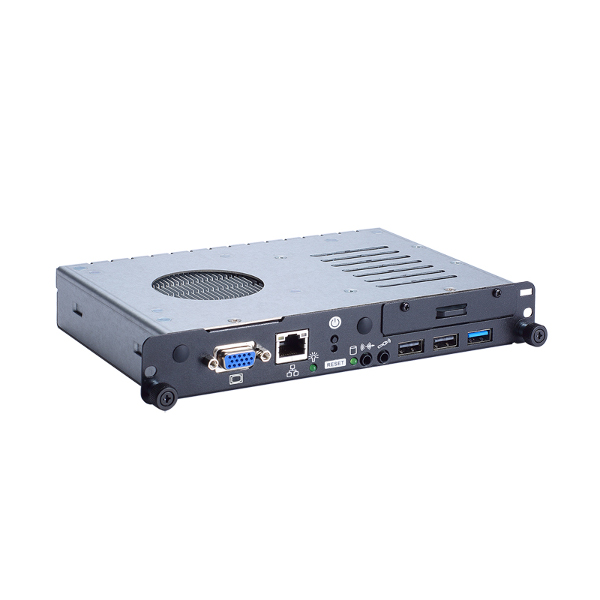

OPS Digital Signage Player with Intel Celeron N3350 2.4GHz processor, up to 8GB SO-DIMM DDR3L-1600, 1x2.5" SATA HDD, mSATA, 1xJAE (DisplayPort, HDMI, COM, USB, Audio), 1xVGA, 1xLAN, 3xUSB-A, 1xSIM, 1xPCIe Full size, M.2, Audio, 12 VDC(JAE)
End-of-life product

Construction
Construction Chassis
Aluminium Chassis
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
USB Total
3
USB 2.0
2
USB v3.x
1
Drive interfaces
mSATA
1
Extension Slots
M.2
1
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xUSB, Audio, Display Port, SIM Card Slot
System Power Input
Input Voltage DC
12 V
Dimensions and weight
Width
163 mm
Height
44 mm
Depth
108 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
2.5 kg
Gross Weight
3.5 kg
