NPort S8455I-T

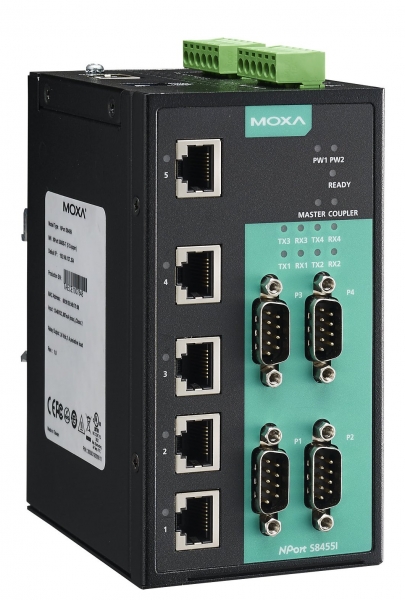

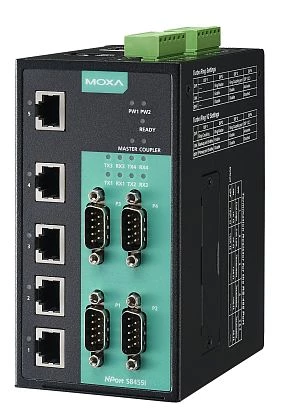

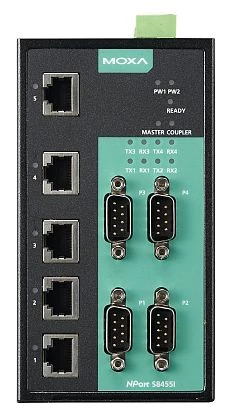

NPort S8455I-T

MOXA
SKU: 07102100
4 RS-232/422/485 ports, 5 10/100M Ethernet ports, 12 to 48 VDC, 2 kV isolation protection, -40 to 75C operating temperature
Price on request
Available
Available

Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, LACP, BootP, ARP, TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
LED / Controls
LED
10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
73.1 mm
Depth
125 mm
Height
134 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, EN 55024
Safety
UL 60950-1, UL 508, EN 60950-1
Dimensions
Gross Weight
1.01 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, LACP, BootP, ARP, TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
LED / Controls
LED
10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
73.1 mm
Depth
125 mm
Height
134 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, EN 55024
Safety
UL 60950-1, UL 508, EN 60950-1
Dimensions
Gross Weight
1.01 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, LACP, BootP, ARP, TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
LED / Controls
LED
10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
73.1 mm
Depth
125 mm
Height
134 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, EN 55024
Safety
UL 60950-1, UL 508, EN 60950-1
Dimensions
Gross Weight
1.01 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, LACP, BootP, ARP, TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
LED / Controls
LED
10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
73.1 mm
Depth
125 mm
Height
134 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, EN 55024
Safety
UL 60950-1, UL 508, EN 60950-1
Dimensions
Gross Weight
1.01 kg

Documentation
NPort S8455/S8458 Datasheet NPort S8000 Series QIG Manual for NPort S8000
Documentation
NPort S8455/S8458 Datasheet NPort S8000 Series QIG Manual for NPort S8000
Documentation
NPort S8455/S8458 Datasheet NPort S8000 Series QIG Manual for NPort S8000
Documentation
NPort S8455/S8458 Datasheet NPort S8000 Series QIG Manual for NPort S8000
NPort S8455I
MOXA NPort S8455I 4 RS-232/422/485 ports, 5 10/100M Ethernet ports, 12 to 48 VDC, 2 kV isolation protection, 0 to 60C operating temperature
NPort S8455I-MM-SC
MOXA NPort S8455I-MM-SC 4 port device server, RS-232/422/485, 3 port 10/100 Ethernet, 2 port 100M Multi mode Fiber, SC connector,15KV ESD, 12-48 VDC
NPort S8455I-MM-SC-T
MOXA NPort S8455I-MM-SC-T 4 port device server, RS-232/422/485, 3 port 10/100 Ethernet, 2 port 100M Multi mode Fiber, SC connector,15KV ESD, 12-48 VDC, -40...+75 C
