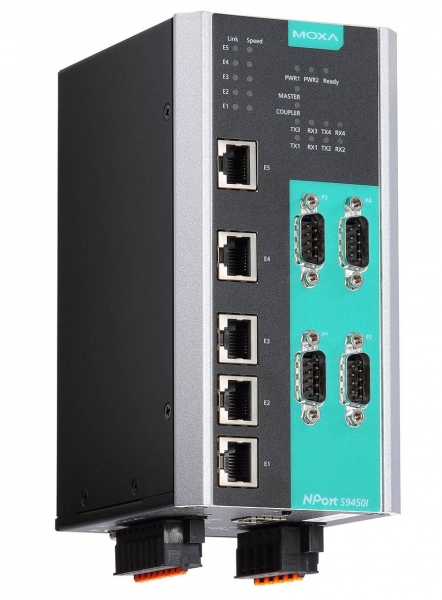

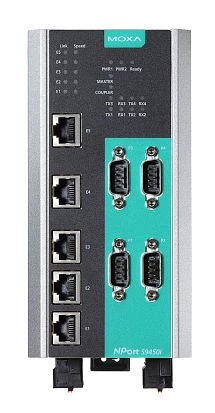

NPort S9450I-WV-T

NPort S9450I-WV-T

MOXA
SKU: 07501200
4-port 3-in-1 Device Server, 5-port Managed Switch, 10/100M LAN, 24/48VDC, -40 to 85C
Price on request
Available
Available

Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, IGMP, LACP, BootP, ARP, TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
Security Protocols
RADIUS
LED / Controls
LED
10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
18..72 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
80 mm
Depth
109 mm
Height
160 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMI
EN 61000-6-4, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 508, UL 61010-2-201
Dimensions
Gross Weight
3 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, IGMP, LACP, BootP, ARP, TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
Security Protocols
RADIUS
LED / Controls
LED
10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
18..72 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
80 mm
Depth
109 mm
Height
160 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMI
EN 61000-6-4, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 508, UL 61010-2-201
Dimensions
Gross Weight
3 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, IGMP, LACP, BootP, ARP, TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
Security Protocols
RADIUS
LED / Controls
LED
10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
18..72 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
80 mm
Depth
109 mm
Height
160 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMI
EN 61000-6-4, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 508, UL 61010-2-201
Dimensions
Gross Weight
3 kg
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, IGMP, LACP, BootP, ARP, TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
Security Protocols
RADIUS
LED / Controls
LED
10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
18..72 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
80 mm
Depth
109 mm
Height
160 mm
Standards and Certifications
Certifications
CE, FCC Class A, FCC
EMI
EN 61000-6-4, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D
Power Automation
IEC 61850-3, IEEE 1613
Safety
UL 508, UL 61010-2-201
Dimensions
Gross Weight
3 kg
