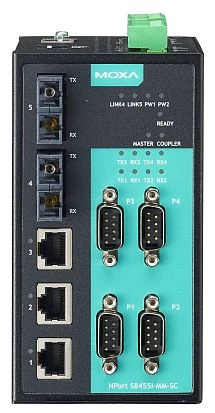

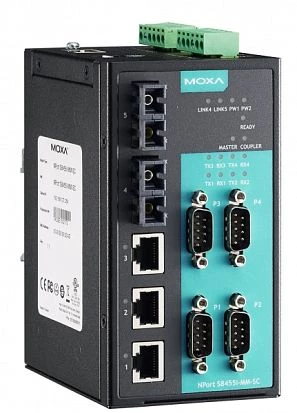

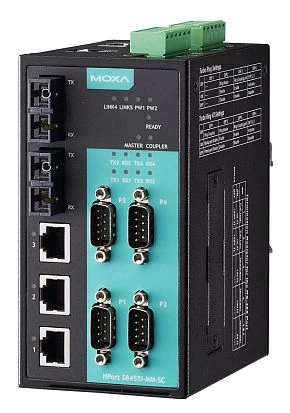

NPort S8455I-MM-SC

MOXA
SKU: 05336700
4 port device server, RS-232/422/485, 3 port 10/100 Ethernet, 2 port 100M Multi mode Fiber, SC connector,15KV ESD, 12-48 VDC
Price on request
Available
Available

Industrial serial interface server NPort S8455I-MM-SC created by MOXA connects serial devices to Ethernet networks. The programmable device server NPort S8455I-MM-SC from MOXA is provided in a robust rugged housing with 5 Ethernet ports and 4 RS-232/422/485 ports. The device can be mounted on a wall or on a DIN-rail. It secures interaction with key protocols: IGMPv1/v2, DHCP Server/Client, DHCP Option 66/67/82, SNTP, SMTP, SNMPv1/v2c/v3, BootP, GMRP, GVRP, HTTP, RARP, RMON, by means of Telnet, TFTP, ICMP, TCP, UDP, DNS, ARP, LACP.The server can be set up by means of Telnet, a console port, switches, or a Web-interface. It is compatible with the following operating systems:Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, Windows Server 2008 SP2. It can operate within a broad temperature range of0 ... 60°C.
Industrial serial interface server NPort S8455I-MM-SC created by MOXA connects serial devices to Ethernet networks. The programmable device server NPort S8455I-MM-SC from MOXA is provided in a robust rugged housing with 5 Ethernet ports and 4 RS-232/422/485 ports. The device can be mounted on a wall or on a DIN-rail. It secures interaction with key protocols: IGMPv1/v2, DHCP Server/Client, DHCP Option 66/67/82, SNTP, SMTP, SNMPv1/v2c/v3, BootP, GMRP, GVRP, HTTP, RARP, RMON, by means of Telnet, TFTP, ICMP, TCP, UDP, DNS, ARP, LACP.The server can be set up by means of Telnet, a console port, switches, or a Web-interface. It is compatible with the following operating systems:Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, Windows Server 2008 SP2. It can operate within a broad temperature range of0 ... 60°C.

Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
2xSC, 3xRJ-45
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, SNTP, GVRP, RMON, TFTP, LACP, BootP, ARP, TCP, IGMPv1/v2, DHCP Option 66/67/82, GMRP, RARP, ICMP
LED / Controls
LED
10/100M LED, READY LED, Master LED, Coupler LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface
Controls
1xReset
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
73.1 mm
Depth
125 mm
Height
134 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, EN 55024
Safety
UL 60950-1, UL 508, EN 60950-1
Dimensions
Gross Weight
1.01 kg
