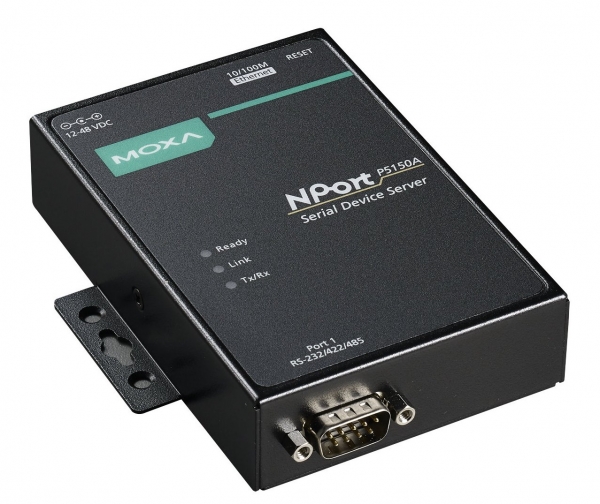

NPort P5150A
MOXA
SKU: 66171900
1-port RS-232/422/485 device server, 10/100M Ethernet, DB9 male, PoE, 0-60C, 1KV serial surge
Price on request
Available
Available
Industrial interface server NPort P5150A produced by MOXA transmits data packets from industrial equipment with serial interfaces via Ethernet or Wi-Fi at the speed 921600 bit/s. The device is housed in a robust metal housing that has 1 Ethernet port and 1 RS-232/422/485 COM-port. The wall and DIN-rail mounting configurations are available. The device interacts with protocols: IGMPv1/v2, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1. The operation modes can be adjusted using Telnet, a computer COM-port, or a Web-interface. The device is compatible with the following operating systems: Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X. It works within a broad temperature range of 0 ... 60 °C.
Industrial interface server NPort P5150A produced by MOXA transmits data packets from industrial equipment with serial interfaces via Ethernet or Wi-Fi at the speed 921600 bit/s. The device is housed in a robust metal housing that has 1 Ethernet port and 1 RS-232/422/485 COM-port. The wall and DIN-rail mounting configurations are available. The device interacts with protocols: IGMPv1/v2, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1. The operation modes can be adjusted using Telnet, a computer COM-port, or a Web-interface. The device is compatible with the following operating systems: Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X. It works within a broad temperature range of 0 ... 60 °C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, BootP, TCP, SNMP V1, IGMPv1/v2, ICMP
LED / Controls
LED
READY LED, TX LED, RX LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Via COM-port, Web-interface
Controls
1xReset
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Operating Conditions
Operating Temperature
0..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
100 mm
Depth
26 mm
Height
111 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022, FCC Part 15
EMS
EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, EN 61000-4-4, EN 61000-4-5
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
