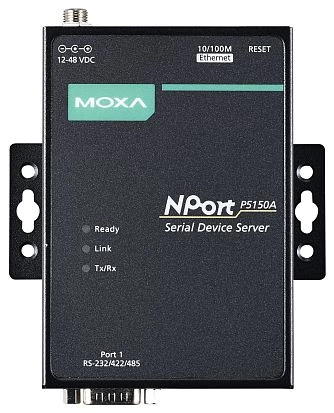

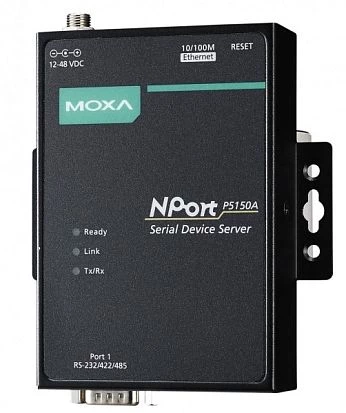

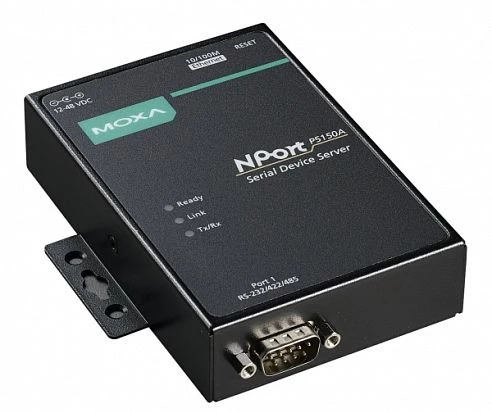

NPort P5150A-T
MOXA
SKU: 06225800
1-port RS-232/422/485 PoE device server, 10/100M Ethernet, DB9 male, PoE, -40-75C, 1KV serial surge
Price on request
Available
Available
Industrial interface server NPort P5150A-T in the standard design from MOXA transfers data from industrial devices with RS-232/422/485 interfaces via Ethernet or wireless connection (speed 921600 bit/s). There is 1 Ethernet port and 1 RS-232/422/485 COM-port located on a robust housing of the programmable server NPort P5150A-T. It is possible to mount the server on a wall or a DIN-rail. The device works with popular protocols: IGMPv1/v2, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1. The operation modes can be configured by means of Telnet, a computer COM-port, or a Web-interface. The device is compatible with all operating systems and functions within a temperature range of -40 ... +75 °C.
Industrial interface server NPort P5150A-T in the standard design from MOXA transfers data from industrial devices with RS-232/422/485 interfaces via Ethernet or wireless connection (speed 921600 bit/s). There is 1 Ethernet port and 1 RS-232/422/485 COM-port located on a robust housing of the programmable server NPort P5150A-T. It is possible to mount the server on a wall or a DIN-rail. The device works with popular protocols: IGMPv1/v2, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1. The operation modes can be configured by means of Telnet, a computer COM-port, or a Web-interface. The device is compatible with all operating systems and functions within a temperature range of -40 ... +75 °C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, BootP, TCP, SNMP V1, IGMPv1/v2, ICMP
LED / Controls
LED
READY LED, TX LED, RX LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Via COM-port, Web-interface
Controls
1xReset
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
100 mm
Depth
26 mm
Height
111 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022, FCC Part 15
EMS
EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, EN 61000-4-4, EN 61000-4-5
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
0.33 kg
