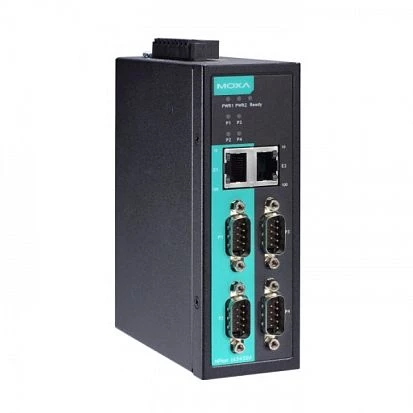

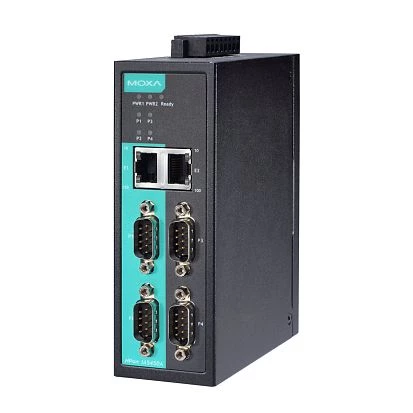

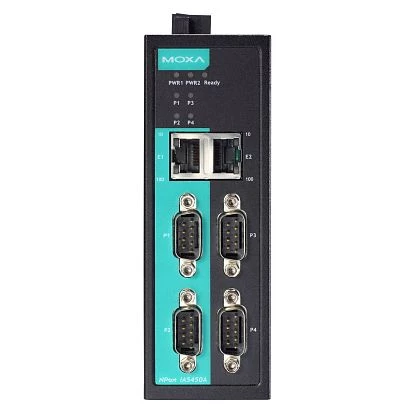

NPort IA5450A-T
MOXA
SKU: 66075400
4-port RS-232/422/485 serial device server, 10/100MBaseT(X), w/ wide operating temperature
Price on request
Available
Available
Industrial serial interface server NPort IA5450A-T by MOXA is applied for centralized control over devices with RS-232/422/485 serial interfaces using Ethernet. The server is housed in a metal chassis that has 4 RS-232/422/485 ports and 2 Ethernet ports. The server offers a DIN-rail mounting configuration. The server secures interaction with popular protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP, Telnet, IGMP. You can set up the server using Telnet, a console port, or a Web-interface. The device is compatible with the following operating systems: Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X. It is characterized by stable functioning at temperatures ranged -40 ... 75°C.
Industrial serial interface server NPort IA5450A-T by MOXA is applied for centralized control over devices with RS-232/422/485 serial interfaces using Ethernet. The server is housed in a metal chassis that has 4 RS-232/422/485 ports and 2 Ethernet ports. The server offers a DIN-rail mounting configuration. The server secures interaction with popular protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP, Telnet, IGMP. You can set up the server using Telnet, a console port, or a Web-interface. The device is compatible with the following operating systems: Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X. It is characterized by stable functioning at temperatures ranged -40 ... 75°C.
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNMP, SNTP, IGMP, BootP, TCP, Rtelnet, ICMP
LED / Controls
LED
10/100M LED, READY LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
134 mm
Depth
46 mm
Height
105 mm
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024, EN 55032
Freefall
IEC 60068-2-32
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nC IIC
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.76 kg
Gross Weight
0.76 kg
Ethernet
