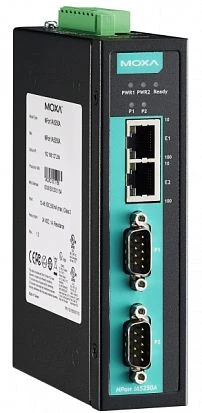

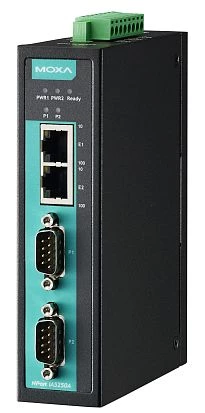

NPort IA5250A-T
MOXA
SKU: 66075000
2-port RS-232/422/485 serial device server, 10/100MBaseT(X), 1KV serial surge. w/ wide operating temperature
Price on request
Available
Available
Industrial serial interface server NPort IA5250A-T produced by MOXA provides centralized control over equipment with RS-232/422/485 serial interface using Ethernet. The programmable device server is housed in a fanless metal chassis with 2 RS-232/422/485 ports and 2 Ethernet ports. There is a DIN-rail mounting configuration available. The server works with basic protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP, Telnet, IGMP. The operation mode can be set up by means of Telnet, a console port, or a Web-interface. The server is compatible with all regular operating systems and works within a temperature range of -40 ... 75°C.
Industrial serial interface server NPort IA5250A-T produced by MOXA provides centralized control over equipment with RS-232/422/485 serial interface using Ethernet. The programmable device server is housed in a fanless metal chassis with 2 RS-232/422/485 ports and 2 Ethernet ports. There is a DIN-rail mounting configuration available. The server works with basic protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP, Telnet, IGMP. The operation mode can be set up by means of Telnet, a console port, or a Web-interface. The server is compatible with all regular operating systems and works within a temperature range of -40 ... 75°C.
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
2xRJ-45
Interfaces
COM Total
2
RS-232/422/485
2
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNMP, SNTP, IGMP, BootP, TCP, Rtelnet, ICMP
LED / Controls
LED
10/100M LED, READY LED, PWR1, PWR2, COM-ports LED
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
105 mm
Depth
36 mm
Height
140 mm
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024, EN 55032
Freefall
IEC 60068-2-32
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nC IIC
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.68 kg
