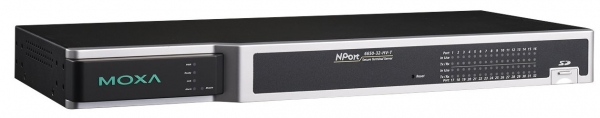

NPort 6650-32-HV-T
MOXA
SKU: 06690100
32 Port Ethernet Secire Terminal Server, 10/100M Ethernet, 3 in 1, RJ-45 8pin, 88-300 VDC, -40 to 85C
Price on request
Available
Available

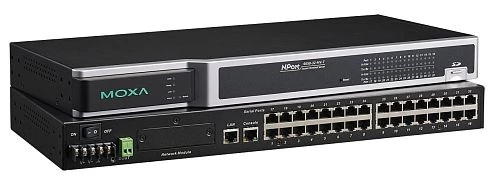

Industrial serial interface server NPort 6650-32-HV-T from MOXA is used to control devices with an interface via Ethernet. The programmable device server NPort 6650-32-HV-T by MOXA is provided in a robust metal housing with 1 Ethernet port and 32 RS-232/422/485 ports. It is available in a 19" rack mounting configuration. The server can work with protocols: SMTP, SNMPv1/v2c/v3, BootP, HTTP using Telnet, PPPoE, ICMP, TCP, UDP, DHCP, DNS, ARP. It can be configured by means of Telnet, a console port, switches, an embedded display and a keyboard, or a Web-interface. It is compatible with all widely spread operating systems. It provides stable operation within a temperature range of -40 ... 85°C.
Industrial serial interface server NPort 6650-32-HV-T from MOXA is used to control devices with an interface via Ethernet. The programmable device server NPort 6650-32-HV-T by MOXA is provided in a robust metal housing with 1 Ethernet port and 32 RS-232/422/485 ports. It is available in a 19" rack mounting configuration. The server can work with protocols: SMTP, SNMPv1/v2c/v3, BootP, HTTP using Telnet, PPPoE, ICMP, TCP, UDP, DHCP, DNS, ARP. It can be configured by means of Telnet, a console port, switches, an embedded display and a keyboard, or a Web-interface. It is compatible with all widely spread operating systems. It provides stable operation within a temperature range of -40 ... 85°C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
32
RS-232/422/485
32
Digital Output
Total channels of digital output
1
Type
Signal Relay
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, BootP, ARP, TCP, ICMP
Security Protocols
SSH, SSL, DES, 3DES, AES
Expansion Module
Quantity of Slots
1
Supported Module
NM series
LED / Controls
LED
Module Fail, Power LED, READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Buttons for Setting up and Displaying Status, Web-interface
Connectors
Connectors
SD card slot
System Power Input
Input Voltage DC
88..300 V
Operating Conditions
Operating Temperature
-40..85 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
195 mm
Height
44 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Safety
UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
1.25 kg
Gross Weight
4 kg
