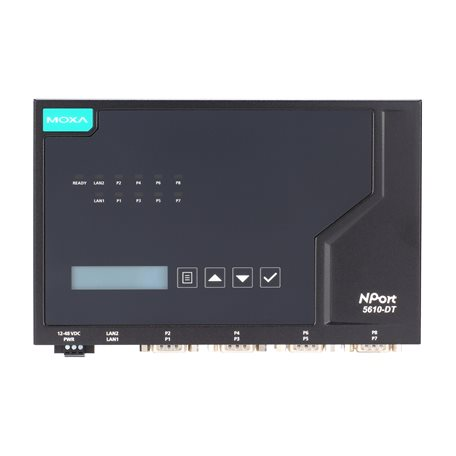

NPort 5610-16-DT-J-G2-T

NPort 5610-16-DT-J-G2-T

MOXA
SKU: 80341500
Compact Desktop Serial Device Server, 2x10/100/1000Base-TX, 16xRS-232, 12..48VDC, Operating Temperature -40..75 C
Price on request
Available
Available

Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
RJ-45
Interfaces
COM Total
16
RS-232
16
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, UDP, DNS, TCP/IP, SNTP, ARP, DHCP Client, ICMP
Security Protocols
HTTPS
Connectors
Connectors
RJ45 (COM)
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Mounting Configuration
Desktop, Wall
Dimensions and weight
Width
197 mm
Depth
125 mm
Height
44 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Safety
UL 62368-1
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
0.9 kg
Gross Weight
1.3 kg
