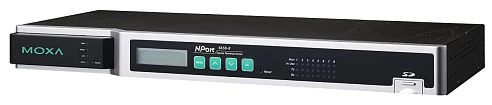

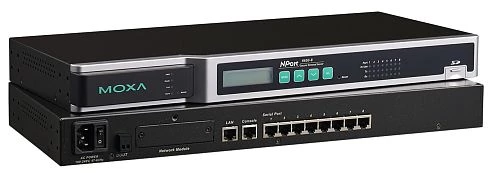

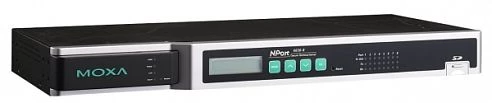

NPort 6610-8
MOXA
SKU: 05063000
8-Ports RS-232 Secure Serial Device Server, SD/MMC Socket, 100...240VAC Power Input
Price on request
Available
Available
Industrial interface server NPort 6610-8 by MOXA is a console and terminal server for connection of serial devices to Ethernet networks. The programmable device server NPort 6610-8 is provided in a robust housing with 1 Ethernet port and 8 RS-232 COM-ports. The server is available in a 19" rack mounting configuration. It secures interaction with key protocols: SMTP, SNMPv1/v2c/v3, BootP, HTTP using Telnet, PPPoE, ICMP, TCP, UDP, DHCP, DNS, ARP. The operation modes can be set up by means of Telnet, a console port, switches, an embedded display and a keyboard, or a Web-interface. It is compatible with the following operating systems: Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, Windows Server 2008 SP2. It is capable of stable operation within a temperature range of 0 ... 55°C.
Industrial interface server NPort 6610-8 by MOXA is a console and terminal server for connection of serial devices to Ethernet networks. The programmable device server NPort 6610-8 is provided in a robust housing with 1 Ethernet port and 8 RS-232 COM-ports. The server is available in a 19" rack mounting configuration. It secures interaction with key protocols: SMTP, SNMPv1/v2c/v3, BootP, HTTP using Telnet, PPPoE, ICMP, TCP, UDP, DHCP, DNS, ARP. The operation modes can be set up by means of Telnet, a console port, switches, an embedded display and a keyboard, or a Web-interface. It is compatible with the following operating systems: Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, Windows Server 2008 SP2. It is capable of stable operation within a temperature range of 0 ... 55°C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
8
RS-232
8
Digital Output
Total channels of digital output
1
Type
Signal Relay
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, BootP, ARP, TCP, ICMP
Security Protocols
SSH, SSL, DES, 3DES, AES
Expansion Module
Quantity of Slots
1
Supported Module
NM series
LED / Controls
LED
Module Fail, Power LED, READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Buttons for Setting up and Displaying Status, Web-interface
Connectors
Connectors
SD card slot
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
195 mm
Height
44 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Safety
UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
1 kg
Gross Weight
3.5 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
8
RS-232
8
Digital Output
Total channels of digital output
1
Type
Signal Relay
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, BootP, ARP, TCP, ICMP
Security Protocols
SSH, SSL, DES, 3DES, AES
Expansion Module
Quantity of Slots
1
Supported Module
NM series
LED / Controls
LED
Module Fail, Power LED, READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Buttons for Setting up and Displaying Status, Web-interface
Connectors
Connectors
SD card slot
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
195 mm
Height
44 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Safety
UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
1 kg
Gross Weight
3.5 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
8
RS-232
8
Digital Output
Total channels of digital output
1
Type
Signal Relay
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, BootP, ARP, TCP, ICMP
Security Protocols
SSH, SSL, DES, 3DES, AES
Expansion Module
Quantity of Slots
1
Supported Module
NM series
LED / Controls
LED
Module Fail, Power LED, READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Buttons for Setting up and Displaying Status, Web-interface
Connectors
Connectors
SD card slot
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
195 mm
Height
44 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Safety
UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
1 kg
Gross Weight
3.5 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
8
RS-232
8
Digital Output
Total channels of digital output
1
Type
Signal Relay
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Telnet, UDP, DNS, DHCP, BootP, ARP, TCP, ICMP
Security Protocols
SSH, SSL, DES, 3DES, AES
Expansion Module
Quantity of Slots
1
Supported Module
NM series
LED / Controls
LED
Module Fail, Power LED, READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Console Port, By Switches, Buttons for Setting up and Displaying Status, Web-interface
Connectors
Connectors
SD card slot
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
195 mm
Height
44 mm
Standards and Certifications
Certifications
CE, WEEE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55024
Freefall
IEC 60068-2-32
Safety
UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
1 kg
Gross Weight
3.5 kg
