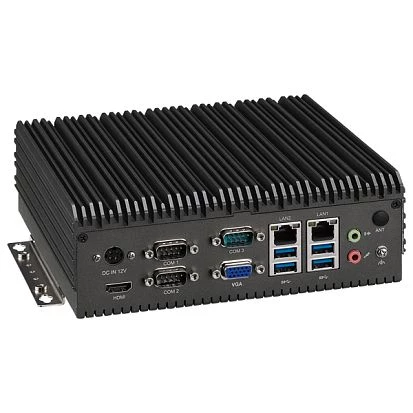

Neu-X302-Series
NEXCOM
SKU: 57610400
Fanless Edge Embedded Computing System, Intel 8/9th Gen Core i3/i5/i7 CPU, up to 32GB DDR4 RAM, 1xM.2 2242/3042 B-Key, 1xM.2 2230 E-Key, 1xHDMI, 1xVGA, 2xGbE LAN, 6xCOM, 4xUSB 3.0, 6x/3xUSB 2.0 headers, 1x8-bit GPIO, Audio, 12VDC-in with PSU, -5..45C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics 630
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
3
RS-232/422/485
3
USB Total
10
USB 2.0
6
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Audio
Audio Controller
Realtek ALC888
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Connectors
Connectors
6xDB9, DB15 VGA, HDMI, 2xRJ45, 4xUSB, Mic In, Line Out, SIM Card Slot, 4-pin DC input
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
200 mm
Height
64.3 mm
Depth
190 mm
Operating Conditions
Vibration
Random: 2Grms @ 5~500 Hz, IEC60068-2-64; Sinusoidal: 2G @ 5~500 Hz, IEC60068-2-6
Shock
50G peak acceleration, 11ms according to IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 55032, EN 55035
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Gross Weight
3 kg
