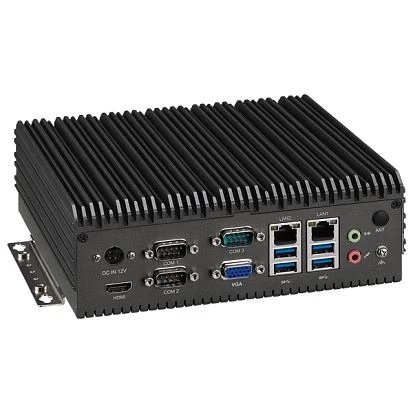

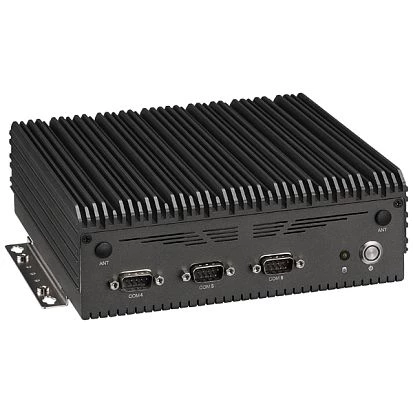

Neu-X302-H

Neu-X302-H

NEXCOM
SKU: 09253200
Fanless Edge Embedded Computing System, support i3/i5/i7 Core 8, 9th Gen. CPUs , up to 32GB SO-DIMM DDR4, M.2 2242/3042 M-Key SSD, HDMI, 2xGbE LAN, 6xCOM, 4xUSB 3.0, M.2 2230 M-Key for WiFi, 12V DC-in with external power adapter
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
2
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45, 4xUSB, Audio Out, 4-pin DC input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Dimensions and weight
Width
200 mm
Height
64.3 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-5..45 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
3 kg
