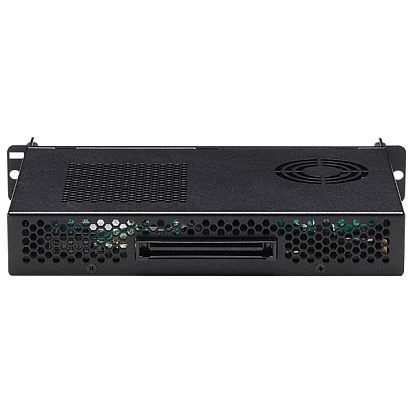

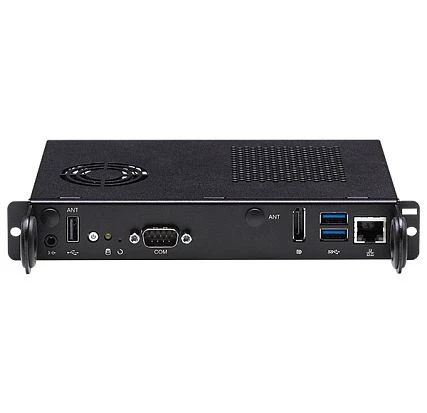

NDiS-M538
NEXCOM
SKU: 08997700
OPS Digital Signage Platform, Intel Core 8th Gen (35W), 2xDDR4 SO-DIMM, 1xTX25(OPS), DP 1.2, 1xGbit LAN, 3xUSB-A, COM, Audio out, M.2 2280 M-key, M.2 2230 E-key, 12...19V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded
Type
Fan
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Intel UHD Graphics 630
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
3
USB 2.0
1
USB v3.x
2
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Connectors
Connectors
DB9, RJ45 Ethernet, 3xUSB, Line Out, Display Port, JAE TX25A (OPS)
System Power Input
Input Voltage DC
12..19 V
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
200 mm
Height
30 mm
Depth
119 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.8 kg
Gross Weight
2.5 kg
