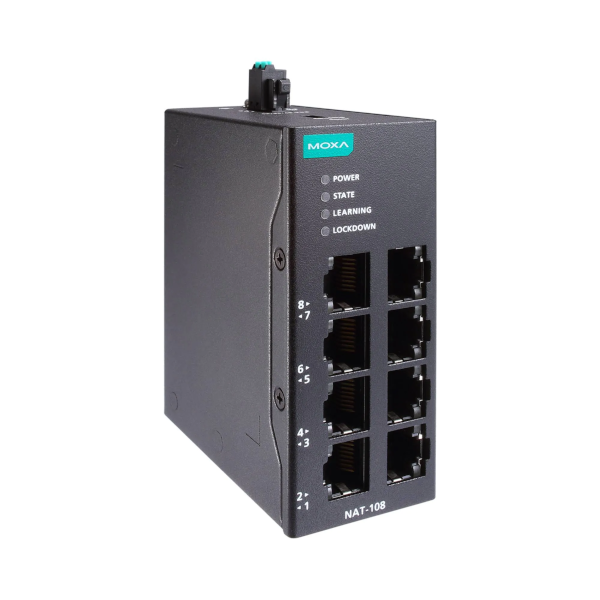

NAT-108
MOXA
SKU: 80132900
Industrial Network Address Translation (NAT) device, 8x10/100Base-TX RJ45, 1xUSB, 12/24/48VDC-in, Operating Temperature -10...60C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, NTP, SNTP, TFTP
Security Protocols
HTTPS, SSH
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
9..60 V
Dimensions and weight
Width
36 mm
Depth
90 mm
Height
73 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032, EN 55035
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.33 kg
Gross Weight
0.5 kg
