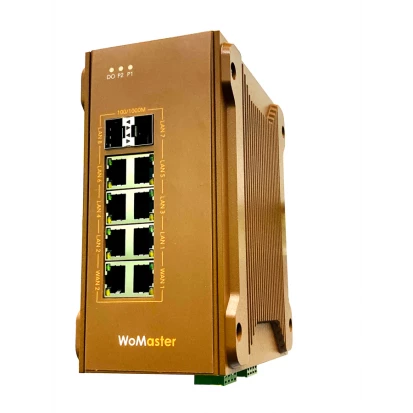

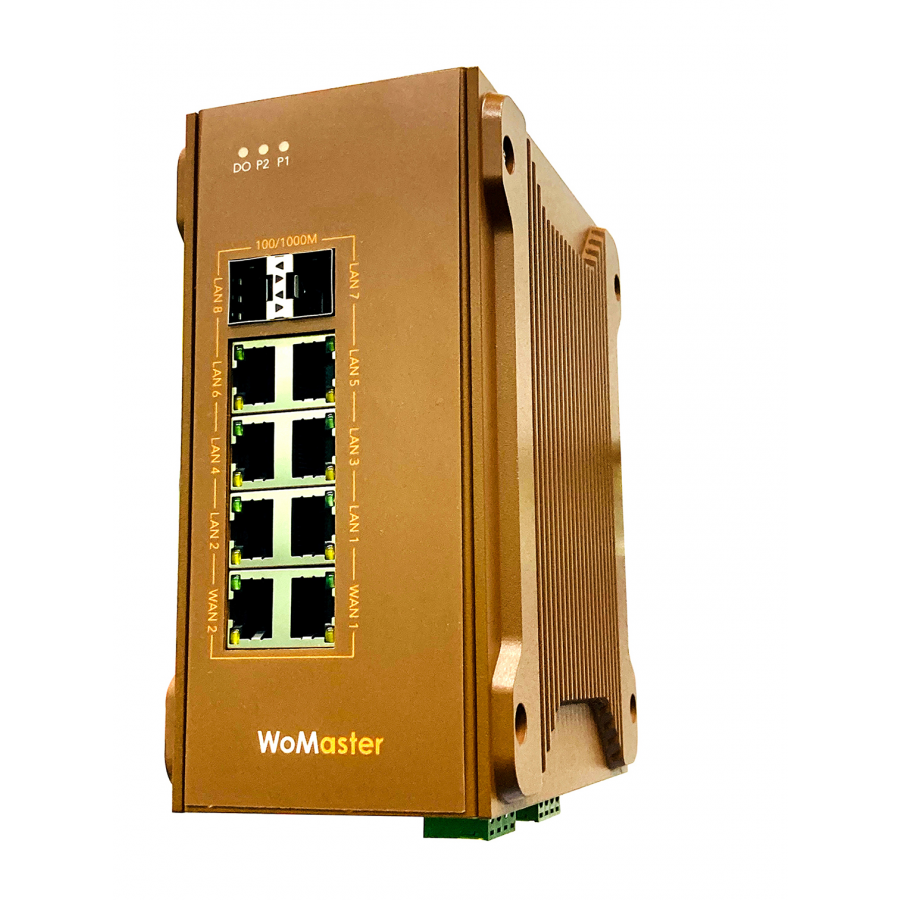

DRS610
WoMaster
SKU: 57635900
Industrial Secure and Redundant Router Firewall, 8x100/1000Base-T, 2x100/1000M SFP, 1xDB9, 1xDI, 1xDO, 10..60VDC, -40..75 C
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
8
Interfaces
RS-232
1
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
9.22 kB
Max. Number of VLANs
256
IGMP Groups
512
Supported Protocols
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
Construction
Protection Level of Chassis
IP30
Dimensions and weight
Width
65 mm
Depth
125 mm
Height
155 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
EN 50121-4, EN 61000-6-2, EN 61000-6-4
Dimensions
Net Weight
1 kg
Gross Weight
1.68 kg
