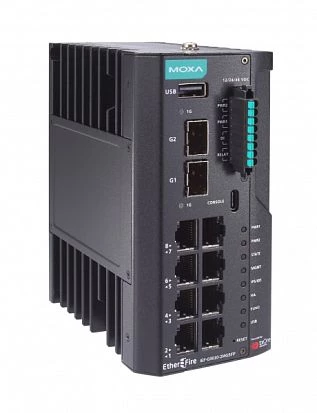

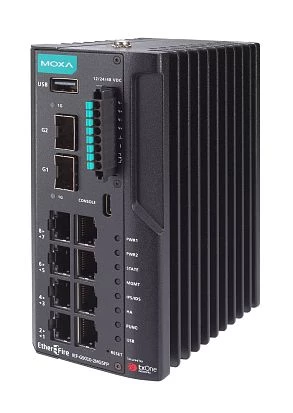

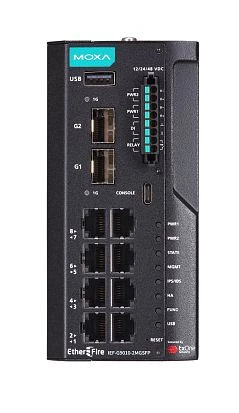

IEF-G9010-2MGSFP-Pro
MOXA
SKU: 66539500
Industrial next-generation firewall with 8 10/100/1000BaseT(X) ports and 2 Multi-Gigabit SFP ports and 1 year of pattern updates, standard temprature
Price on request
Available
Available
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
8xRJ-45
SFP 100/1000 Mbit Ports
2
Switch Properties
Switch Level
Layer 3
Supported functions
Supports network management system, icmp_flood, igmp_flood, udp_flood, udp_port_scan, tcp_syn_flood, tcp_port_syn_scan, tcp_port_fin_scan, tcp_port_null_scan, tcp_port_xmas_scan, arp_flood, icmp_death
Supported Protocols
Protocol Layer 3
Static Routing
Managment Protocols
DHCP Server/Client, DNS, NTP Client
Security Protocols
SSH, NAT, Firewall
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Digital Input
Total channels of digital input
1
Type
Wet contact
Level of Logic "0"
-30~3 V
Level of Logic "1"
13~30 V
Digital Output
Total channels of digital output
1
Type
Signal Relay
LED / Controls
Setup of Operation Mode
Console Port, Web-interface, ABC-configurator
Connectors
Connectors
Console Port USB
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
64 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Rolling Stock
EN 50121-4
Automotive
NEMA TS2
Safety
UL 60950-1, UL 62368-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
