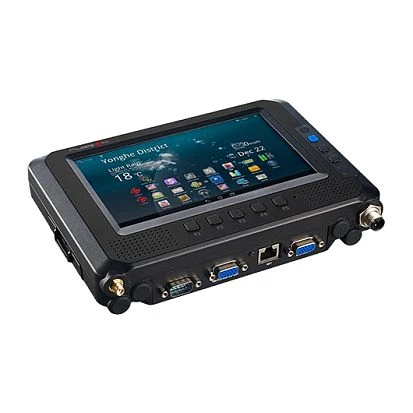

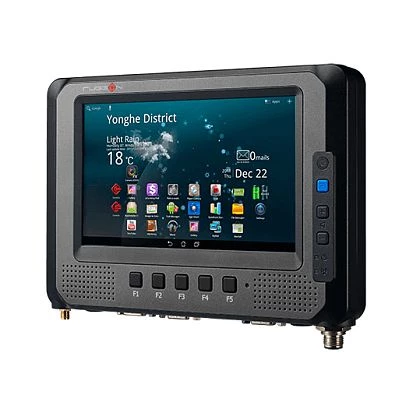

MT7010

MT7010

RuggON
SKU: 08451500
Mobile Data Terminal, 7" WXGA, 1024x600, 500nits, Capacitive multi-touch, Quad Core Cortex-A7 1.3GHz CPU, 2GB LPDDR2, 16GB eMMC, 1xLAN, 2xCOM, 2xUSB, 4xDIO, Dual Micro SIM, Micro SD, CAN Bus, -20...60C, Android 5.1 image
Price on request
Available
Available

Construction
Construction Chassis
Rubber
Mounting Configuration
Wall VESA 75
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A7
Max CPU frequency
1.3 GHz
Memory
Form-factor
DDR2
Default on Board Memory
2 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB 2.0
2
Digital Input-Output
GPIO
Yes
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Extension Slots
SIM Card slots
Micro-SIM
Antenna characteristics
Cellular interfaces
4G
Additional Functions
GPS
GPS
Connectors
Connectors
RJ45 Ethernet, 2xUSB, Mic In, Line Out, DB15 CAN Bus, Micro-SIM card slot
System Power Input
Input Voltage DC
9..36 V
Dimensions and weight
Width
220 mm
Height
152 mm
Depth
40 mm
Operating Conditions
Operating Temperature
-30..60 °C
Vibration
MIL-STD-810G, Method 514.7 c2/c3/c4
Shock
MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810F Test Method 514.5C-2 Vibration
Vehicle
E-Mark
Dimensions
Net Weight
0.95 kg
Gross Weight
2 kg
