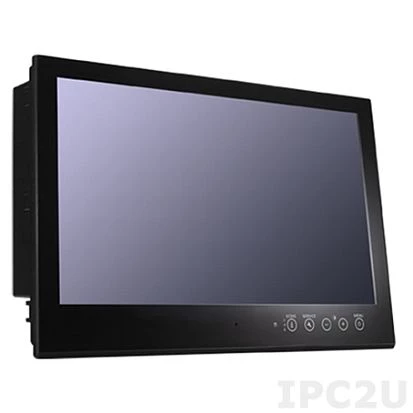

MD-224X
MOXA
SKU: 06601200
24-inch display, 16:9 aspect ratio, full HD (1920x1080), LED backlighting, RS-232 & RS-422/485 serial ports, dual-power supply (AC/DC)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Built-in, Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP54
Protection Level of Chassis
IP22
Display
Display Type
LCD MVA
Diagonal
24 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
5000~1
Input Interface
VGA, DVI-D
LED / Controls
LED
LED Bar
Controls
Control Buttons
System Power Input
Input Voltage DC
18..30 V
Input Voltage AC
100..240 V
Power Consumption
40 W
Operating Conditions
Operating Temperature
-15..55 °C
Dimensions and weight
Width
595 mm
Height
393 mm
Depth
75 mm
Standards and Certifications
EMI
EN 55022 Class B, FCC Part 15 Subpart B Class A
EMS
EN 55024-4-2, EN 55024-4-3, EN 55024-4-4
Marine grade
DNV, IACS-E10, IEC 60945 4th, IEC 61174
Safety
CCC, DNV 2.4, UL/cUL, UL 60950-1
Dimensions
Net Weight
12 kg
Gross Weight
13.5 kg
