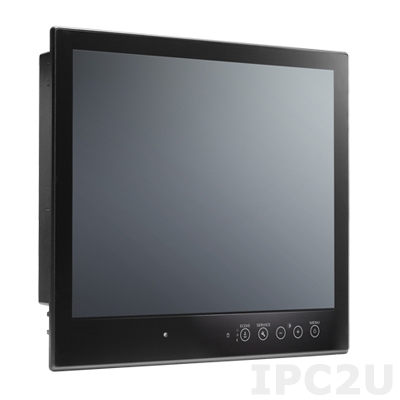

MD-219Z-HB

MD-219Z-HB

MOXA
SKU: 07401100
19-inch, 5:4 aspect ratio sunlight readable display (1280x1024), projected capacitive multi-touch, LED backlight, DVI-D/VGA, RS-232 & RS-422/485 serial ports, AC/DC dual power
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Protection Level of Chassis
IP22
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD MVA
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
5:4
Brightness
1000 Cd/m2
Contrast Ratio
2000~1
Input Interface
VGA, DVI-D
Touch Screen
Touch Screen Type
Capacitive
LED / Controls
LED
1xOn/Off LED
Controls
KeyPad
Connectors
Connectors
DB9, DVI-D, DB15 VGA, AC Input, DC input (terminal block), Terminal block
System Power Input
Input Voltage DC
18..30 V
Input Voltage AC
100..240 V
Power Consumption
40 W
Operating Conditions
Operating Temperature
-15..55 °C
Dimensions and weight
Width
429 mm
Height
387 mm
Depth
75 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024
Explosion safety
UL/cUL Class I Division 2
Marine grade
DNV, IACS-E10, IEC 60945 4th, IEC 61174, ABS
Safety
CCC, UL 60950-1
Dimensions
Net Weight
7.8 kg
Gross Weight
9 kg
