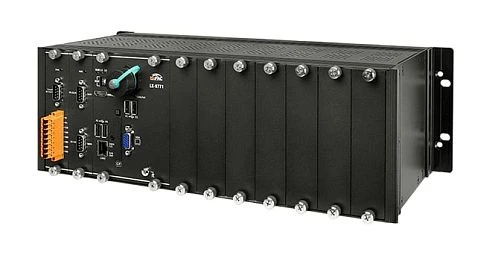

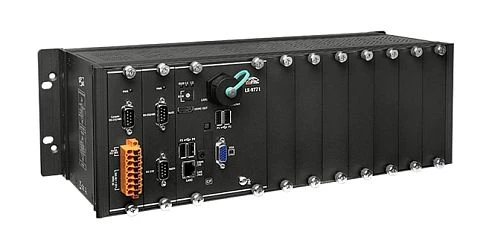

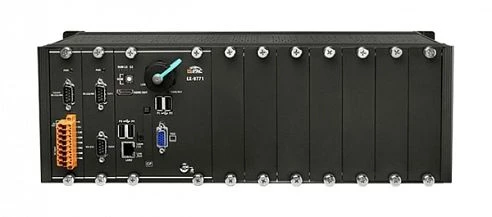

LX-9771
ICP DAS
SKU: 07364400
PC-compatible industrial controller, Intel Atom E3827 1.75GHz CPU, 2GB DDR3, 32GB mSATA SSD, 8GB CF, VGA, 1xRS-232, 1xRS-485, 2xRS-232/485, 4xUSB, 2xEthernet, 7 Expansion Slots, Linux kernel 3.2
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Atom E3827
Max CPU frequency
1.75 GHz
Memory
Default on Board Memory
2 GB
Installed drive
Flash Memory Capacity
32 MB
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
128 kB
1st Storage Capacity
16 GB
Drive interfaces
CompactFlash Slots
1
Expansion Module
Quantity of Slots
7
Supported Module
I-9K series, I-97K series
Software
Operating System Installed
Linux OS
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
1
RS-485
1
RS-232/485
2
USB Total
4
Additional Functions
Watchdog timer type
Hardware
Connectors
Connectors
3xDB9, DB15 VGA, 2xRJ45 Ethernet, 4xUSB, DC Input
Graphic
Interfaces
VGA
Dimensions and weight
Width
422 mm
Depth
133 mm
Height
164 mm
System Power Input
Input Voltage DC
10..30 V
Power Supply Reserve input Voltage DC
10..30 V
Redundant power input
Yes
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1 kg
