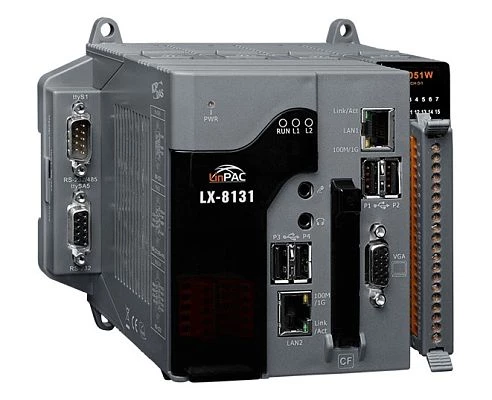

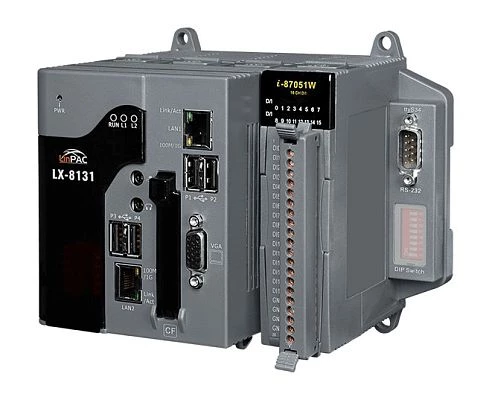

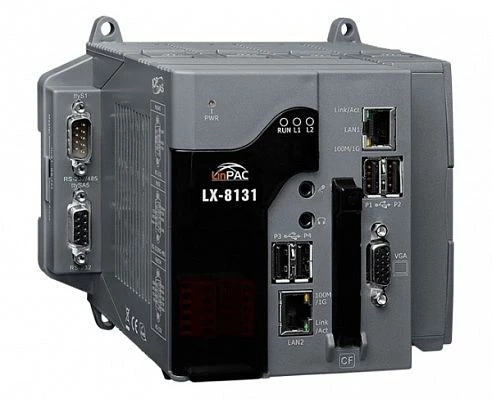

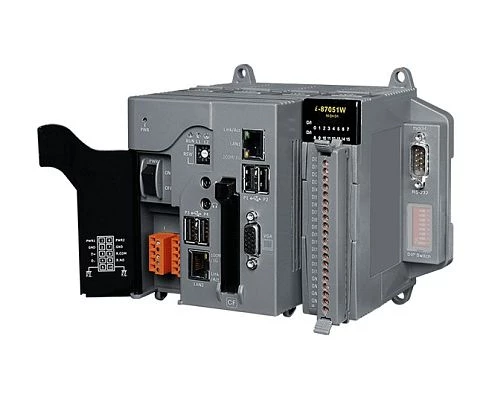

LX-8131
ICP DAS
SKU: 07363600
PC-compatible industrial controller, RDC R3600 1.0 GHz CPU, 2GB DDR3, 32GB mSATA SSD, 8GB CF, VGA, 2xRS-232, 1xRS-485, 1xRS-232/485, 4xUSB, 2xEthernet, 1 Expansion Slot, Linux kernel 3.2
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
RDC R3600
Max CPU frequency
1 GHz
Memory
Default on Board Memory
2 GB
Installed drive
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
512 kB
Drive Type
SSD
1st Storage Capacity
32 GB
Drive interfaces
CFast Slots
1
Expansion Module
Quantity of Slots
1
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
169 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
RDC R3600
Max CPU frequency
1 GHz
Memory
Default on Board Memory
2 GB
Installed drive
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
512 kB
Drive Type
SSD
1st Storage Capacity
32 GB
Drive interfaces
CFast Slots
1
Expansion Module
Quantity of Slots
1
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
169 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
RDC R3600
Max CPU frequency
1 GHz
Memory
Default on Board Memory
2 GB
Installed drive
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
512 kB
Drive Type
SSD
1st Storage Capacity
32 GB
Drive interfaces
CFast Slots
1
Expansion Module
Quantity of Slots
1
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
169 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
RDC R3600
Max CPU frequency
1 GHz
Memory
Default on Board Memory
2 GB
Installed drive
EEPROM Memory Capacity
16 kB
MRAM Memory Capacity
512 kB
Drive Type
SSD
1st Storage Capacity
32 GB
Drive interfaces
CFast Slots
1
Expansion Module
Quantity of Slots
1
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
4
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
169 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
