Linux-Based Industrial Controllers - Reliable & Efficient Solutions

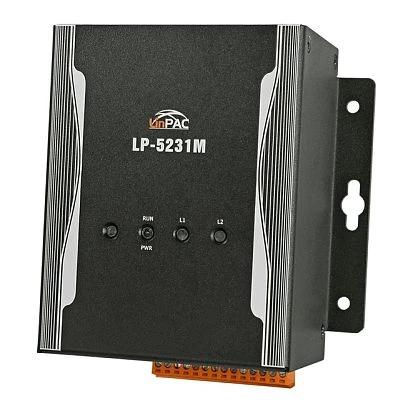

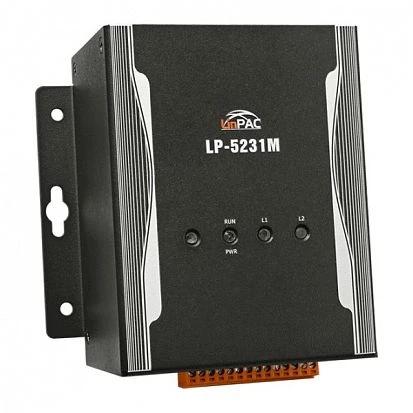

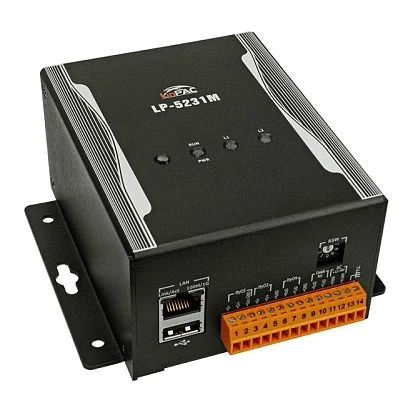

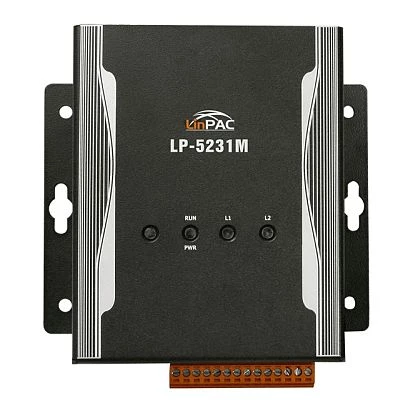

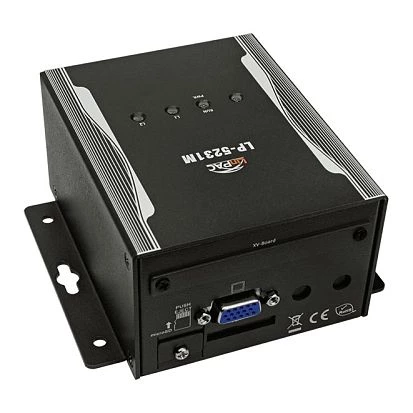

LP-5231M

LP-5231M

ICP DAS
SKU: 07548100
PC-compatible Cortex-A8 1GHz Industrial Controller, 512Mb Flash, 512Mb SRAM, VGA, 2xRS-232, 2xRS-485, 1xUSB, 1xEthernet, Linux 3.2.14, with 1 Expansion Slot, metal case
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
512 MB
EEPROM Memory Capacity
64 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
Screw Terminal
Graphic
Interfaces
VGA
Dimensions and weight
Width
117 mm
Depth
58 mm
Height
126 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.46 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
512 MB
EEPROM Memory Capacity
64 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
Screw Terminal
Graphic
Interfaces
VGA
Dimensions and weight
Width
117 mm
Depth
58 mm
Height
126 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.46 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
512 MB
EEPROM Memory Capacity
64 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
Screw Terminal
Graphic
Interfaces
VGA
Dimensions and weight
Width
117 mm
Depth
58 mm
Height
126 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.46 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Default on Board Memory
0.5 GB
Installed drive
Flash Memory Capacity
512 MB
EEPROM Memory Capacity
64 kB
1st Storage Capacity
4 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XV - board
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Connectors
Connectors
Screw Terminal
Graphic
Interfaces
VGA
Dimensions and weight
Width
117 mm
Depth
58 mm
Height
126 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.46 kg

Documentation
User Mnual Seria LP
Documentation
User Mnual Seria LP
Documentation
User Mnual Seria LP
Documentation
User Mnual Seria LP
