Linux-Based Industrial Controllers - Reliable & Efficient Solutions

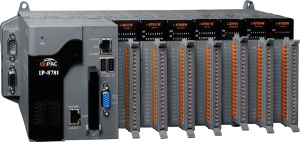

LP-8781-EN

LP-8781-EN

ICP DAS
SKU: 05490300
PC-compatibleAMD LX800 500MHz Industrial Controller, 4Gb Flash, 1Gb SRAM, 2xRS-232, 1xRS-485, 1xRS-232/485, 2xEthernet, Linux 2.6.19, with 7 Expansion Slots
End-of-life product

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
AMD LX800
Max CPU frequency
0.5 GHz
Memory
Default on Board Memory
1 GB
SRAM
512 kB
Installed drive
Flash Memory Capacity
4 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
8 GB
Drive interfaces
CompactFlash Slots
1
Expansion Module
Quantity of Slots
7
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Linux OS
Programming Method
C/C++
Development Software
GNU C
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-485
1
RS-232/485
1
USB Total
2
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
355 mm
Depth
132 mm
Height
125 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1.74 kg
Construction
