LPC-P240W-2X

LPC-P240W-2X

ELGENS
SKU: 56970300
24" TFT LCD Fanless Panel PC P-cap 2X Series, 1920x1080, 300 cd/m2, IP65/66 Front, PCAP touch, Variants with i3/i5/i7 6th/7th Gen. CPU, max. 16GB RAM, 4xUSB, 2xLAN, 4xCOM, DP/HDMI, 9-36 VDC-in with power adapter, -30..+70 temp., IEC-60945 Certified
Price on request
Available
Available

System configuration
Price with VAT
Price on request
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Price on request

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
24 "
Maximum resolution
1920x1080 Dots
Brightness
300 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Skylake, Kaby Lake
Processor Installed
Intel Core i7-6600U, Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i5-7300U
CPU Support Type
Core i3, Core i5, Core i7
Memory
Form-factor
DDR4
Maximum Memory
16 GB
Ethernet
Total Ethernet
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2

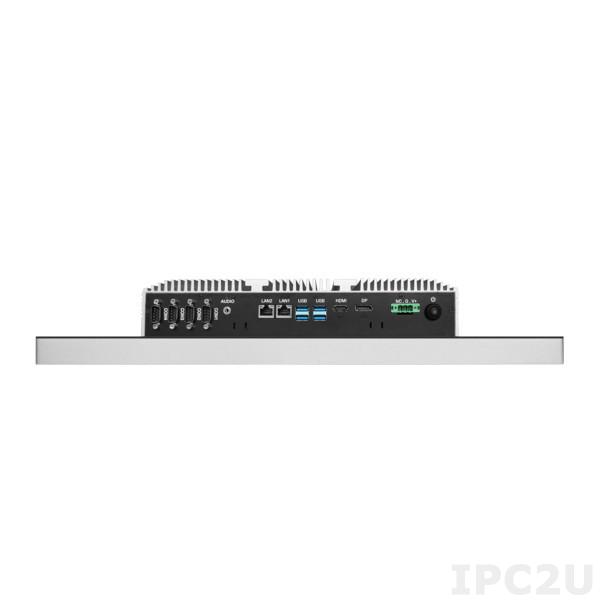

Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
589.6 mm
Height
359.06 mm
Depth
84 mm
Operating Conditions
Operating Temperature
-30..70 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE, FCC Class A, FCC Class B
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
