LPC-P190S-2VE

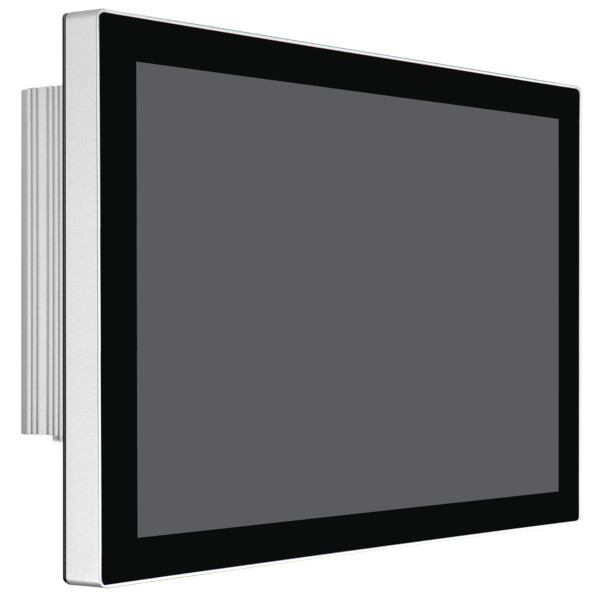

LPC-P190S-2VE

ELGENS
SKU: 56975500
19" Fanless P-cap 2VE Series Panel PC, 1280x1024, 350 cd/m2, IP65/IP66 Front, PCAP touch, Variants with i3/i5/i7 6th/7th Gen. CPU, max. 32GB RAM, 4xUSB, 2xLAN, 5xCOM, DP, DVI, 9-36 VDC-in, -40..+80 Operating wide temp.
Price on request
Available
Available

System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Price on request
Price on request
Price on request

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP66
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Skylake, Kaby Lake
Processor Installed
Intel Core i7-6600U, Intel Core i3-6100U, Intel Celeron 3955U, Intel Core i5-6300U, Intel Core i5-7300U
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
Interfaces
COM Total
5
RS-232/422/485
5
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
DVI-D, HDMI, 2xRJ45, Audio, Display Port
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows 7, Windows 8.1, Windows 10
Dimensions and weight
Width
421.8 mm
Height
350 mm
Depth
84 mm
Operating Conditions
Operating Temperature
-40..80 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE, FCC Class A, FCC Class B
Dimensions
Net Weight
8.5 kg
Gross Weight
14.8 kg
