Home
Catalog
Industrial Computers
Industrial Panel PCs
Panel-PCs Fanless
LPC-P170S-10

LPC-P170S-10

ELGENS
SKU: 56928000

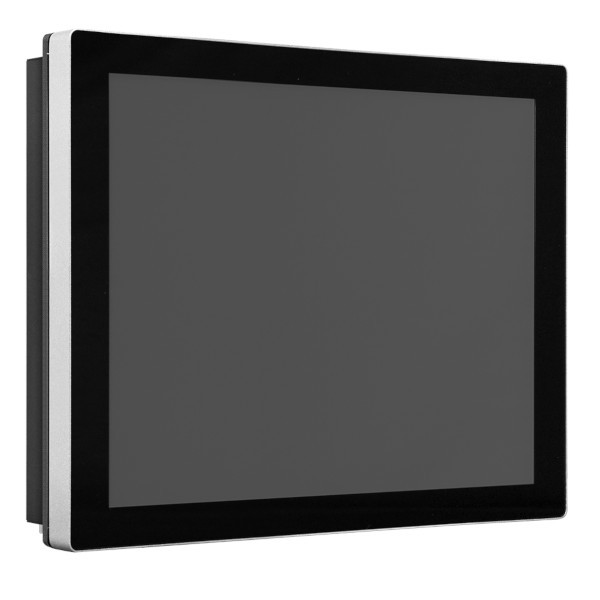

Fanless Panel Computer 17" TFT LCD, 1280x1024, 350 cd/m2, Projected capacitive touch, Intel Celeron N3160 1.60GHz, max.8GB RAM, 4xUSB, 2xLAN, DP, HDMI, 2xCOM,mSATA, 2.5" HDD Tray, 2xmini PCIe, IP65 Front, 9-36 VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
390.3 mm
Height
332.8 mm
Depth
82 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE/FCC, FCC Class A, FCC Class B
Dimensions
Gross Weight
10.6 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
390.3 mm
Height
332.8 mm
Depth
82 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE/FCC, FCC Class A, FCC Class B
Dimensions
Gross Weight
10.6 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
390.3 mm
Height
332.8 mm
Depth
82 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE/FCC, FCC Class A, FCC Class B
Dimensions
Gross Weight
10.6 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
390.3 mm
Height
332.8 mm
Depth
82 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE/FCC, FCC Class A, FCC Class B
Dimensions
Gross Weight
10.6 kg

Documentation
LPC-P170S-10-Datasheet
Documentation
LPC-P170S-10-Datasheet
Documentation
LPC-P170S-10-Datasheet
Documentation
LPC-P170S-10-Datasheet
