LPC-P156W-10

LPC-P156W-10

ELGENS
SKU: 56927900

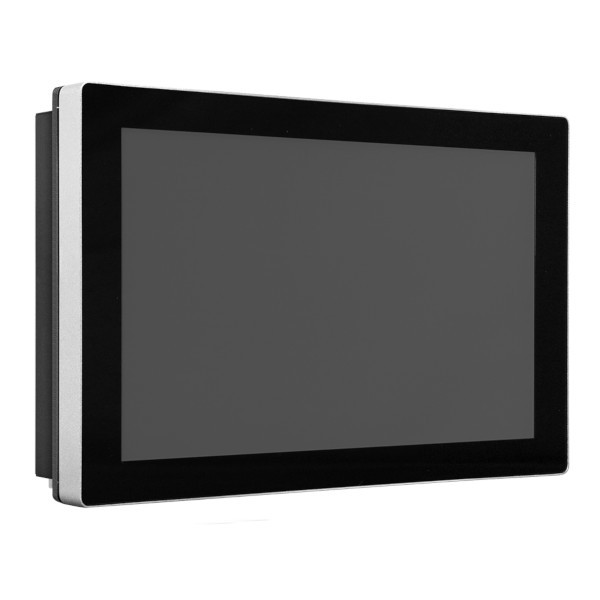

Fanless Panel Computer 15.6" TFT LCD, 1920x1080, 450 cd/m2, Projected capacitive touch, Intel Celeron N3160 1.60GHz, max.8GB RAM, 4xUSB, 2xLAN, DP, HDMI, 2xCOM,mSATA, 2.5" HDD Tray, 2xmini PCIe, IP65 Front, 9-36 VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
399.2 mm
Height
243.5 mm
Depth
76 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE, FCC Class A, FCC Class B
Dimensions
Net Weight
3 kg
Gross Weight
10.6 kg
