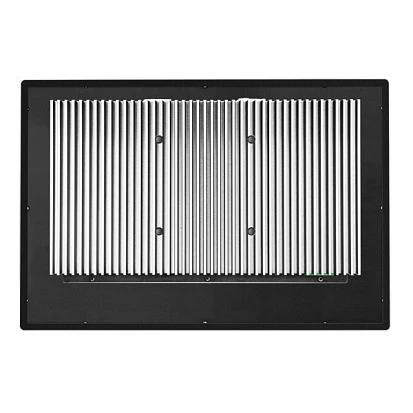

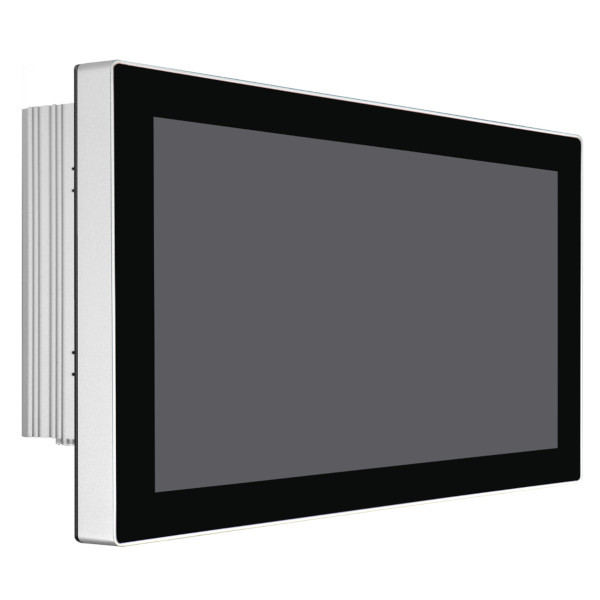

LPC-P121W-10

LPC-P121W-10

ELGENS
SKU: 56927700
Fanless Panel Computer 12.1" TFT LCD, 1280x800, 500 cd/m2, Projected capacitive touch, Intel Celeron N3160 1.60GHz, max.8GB RAM, 4xUSB, 2xLAN, DP, HDMI, 2xCOM,mSATA, SATA3, 2xmini PCIe, IP65 Front, 9-36 VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1280x800 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
303.52 mm
Height
205.6 mm
Depth
78 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
7.4 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1280x800 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
303.52 mm
Height
205.6 mm
Depth
78 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
7.4 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1280x800 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
303.52 mm
Height
205.6 mm
Depth
78 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
7.4 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1280x800 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Braswell
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
Interfaces
COM Total
4
RS-232
3
RS-422/485
1
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
303.52 mm
Height
205.6 mm
Depth
78 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
7.4 kg
