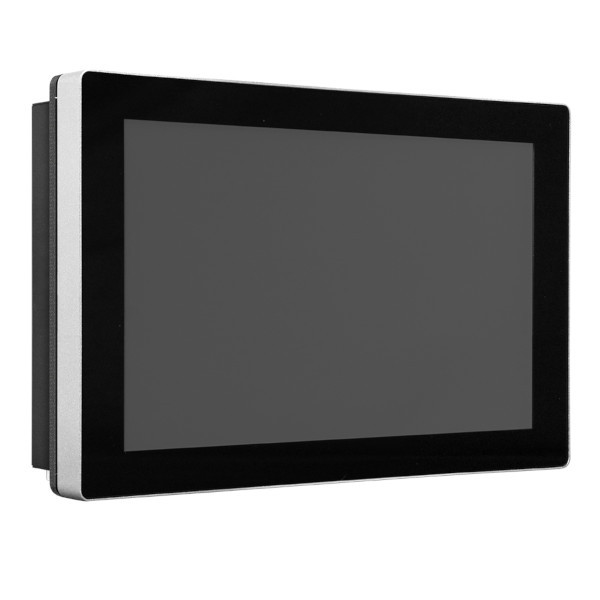

LPC-P101W-10

LPC-P101W-10

ELGENS
SKU: 56925700
Fanless Panel Computer 10.1" TFT LCD, 1280x800, Projected capacitive touch, Intel Celeron N3160 1.60GHz, max.8GB RAM, 4xUSB, 2xLAN, DP, HDMI, 2xCOM,mSATA, SATA3, 2xmini PCIe, IP65 Front, 9-36 VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
258.96 mm
Height
176.6 mm
Depth
78 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE/FCC, FCC Class A, FCC Class B
Dimensions
Gross Weight
7.4 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
258.96 mm
Height
176.6 mm
Depth
78 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE/FCC, FCC Class A, FCC Class B
Dimensions
Gross Weight
7.4 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
258.96 mm
Height
176.6 mm
Depth
78 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE/FCC, FCC Class A, FCC Class B
Dimensions
Gross Weight
7.4 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N3160
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Audio, Display Port
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows 8, Windows 7 Professional, Windows 10
Dimensions and weight
Width
258.96 mm
Height
176.6 mm
Depth
78 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Standards and Certifications
Certifications
CE/FCC, FCC Class A, FCC Class B
Dimensions
Gross Weight
7.4 kg

Documentation
LPC-P101W-10-Datasheet
Documentation
LPC-P101W-10-Datasheet
Documentation
LPC-P101W-10-Datasheet
Documentation
LPC-P101W-10-Datasheet
