LNP-2602G-SFP

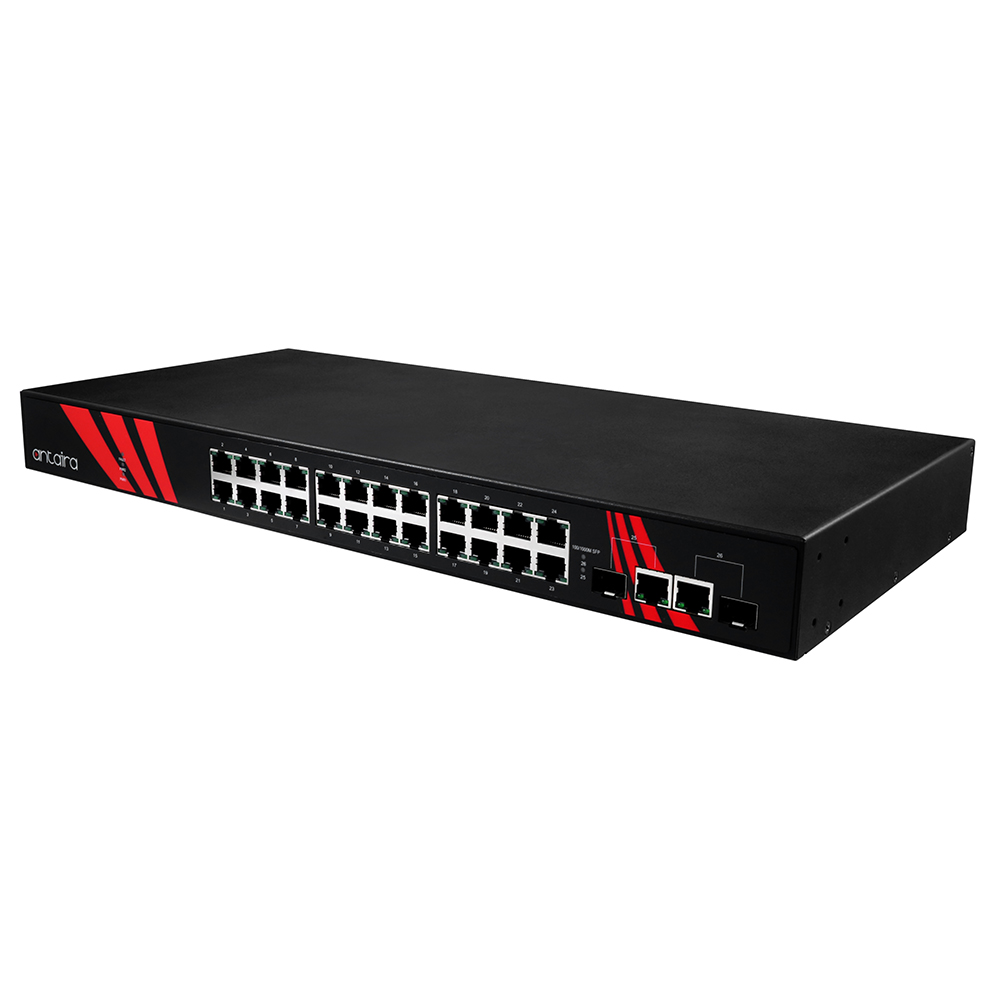

LNP-2602G-SFP

Antaira Technologies
SKU: 80213000
Industrial Unmanaged PoE+ Ethernet Switch, IP30, 24x10/100/1000Base-TX with PoE+, 2x100/1000 Combo Ports, Power Input 48..55 VDC, Operating Temperature -10...70 C
Price on request
Available
Available

Ethernet
Total Ethernet
26
10/100/1000 Mbit/s
26
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
24
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP40
Height
1 U
Dimensions and weight
Width
440 mm
Depth
44 mm
Height
200 mm
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.72 kg
Gross Weight
3.63 kg
