IS-RG310PL-2F-8-A

IS-RG310PL-2F-8-A

ISON
SKU: 80296500

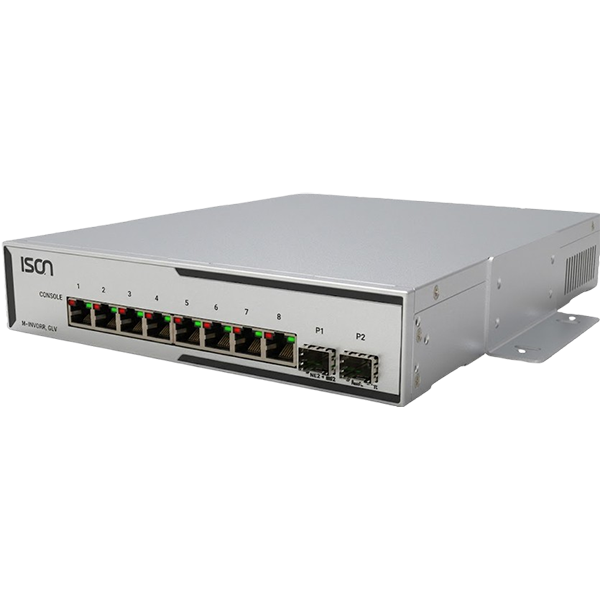

Industrial Unmanaged Switch, IP30, 8x10/100/1000Base-TX with PoE, 2x100/1000Base-FX SFP, 100/240 VAC, Operating Temperature -40..75 C
Price on request
Available
Available

Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
PoE 10/100/1000 Mbit/s
8
Power Budget
240 W
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9 kB
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
Construction
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
220 mm
Depth
44 mm
Height
270 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.5 kg
Gross Weight
3 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
PoE 10/100/1000 Mbit/s
8
Power Budget
240 W
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9 kB
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
Construction
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
220 mm
Depth
44 mm
Height
270 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.5 kg
Gross Weight
3 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
PoE 10/100/1000 Mbit/s
8
Power Budget
240 W
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9 kB
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
Construction
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
220 mm
Depth
44 mm
Height
270 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.5 kg
Gross Weight
3 kg
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
PoE 10/100/1000 Mbit/s
8
Power Budget
240 W
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9 kB
Supported Protocols
Managment Protocols
UDP, TCP
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control
Construction
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
220 mm
Depth
44 mm
Height
270 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.5 kg
Gross Weight
3 kg

Documentation
IS-RG310PL-2F-8-A-Datasheet.pdf
Documentation
IS-RG310PL-2F-8-A-Datasheet.pdf
Documentation
IS-RG310PL-2F-8-A-Datasheet.pdf
Documentation
IS-RG310PL-2F-8-A-Datasheet.pdf

Get a Quote

ISON
SKU: 80296500
IS-RG310PL-2F-8-A
