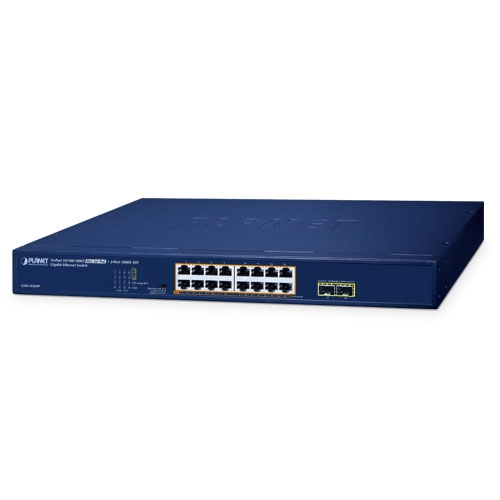

GSW-1820HP
Planet
SKU: 57403700
Gigabit Ethernet Switch, 16x10/100/1000Base-T with PoE+, 2x1000Base-X SFP, 100..240 VAC, Operating Temperature 0..50 C
Price on request
Available
Available
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.2 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Construction
Construction Chassis
Metal Chassis
Dimensions and weight
Width
441.2 mm
Depth
207.5 mm
Height
44.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15B Class A
Dimensions
Net Weight
2.35 kg
Gross Weight
2.85 kg
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.2 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Construction
Construction Chassis
Metal Chassis
Dimensions and weight
Width
441.2 mm
Depth
207.5 mm
Height
44.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15B Class A
Dimensions
Net Weight
2.35 kg
Gross Weight
2.85 kg
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.2 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Construction
Construction Chassis
Metal Chassis
Dimensions and weight
Width
441.2 mm
Depth
207.5 mm
Height
44.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15B Class A
Dimensions
Net Weight
2.35 kg
Gross Weight
2.85 kg
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.2 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage AC
100..240 V
Construction
Construction Chassis
Metal Chassis
Dimensions and weight
Width
441.2 mm
Depth
207.5 mm
Height
44.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15B Class A
Dimensions
Net Weight
2.35 kg
Gross Weight
2.85 kg
Documentation
Documentation
Documentation
Documentation
