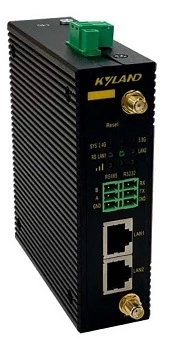

KyAir110-2GE1D-L5
Kyland
SKU: 11222800
Industrial Wi-Fi Wireless Access Point (AP/Client), 802.11a/b/g/n/ac WLAN, 2.4/5GHz, 2x10/100/1000 LAN, 1xRS232/485, 12-36VDC
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xRJ-45
Interfaces
COM Total
1
RS-232/485
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Quantity of Wi-Fi
2
Wi-Fi Operation Mode
Access point, Client
Security
WPA, WPA-PSK, MAC address authentication, Hide SSID, WPA2-PSK, WPA2-Enterprise
Supported technologies
2x2 MIMO, RTS/CTS
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Telnet, TFTP, FTP, SNMP Trap, DHCP Server
Security Protocols
VPN, ACL, PPPoE
LED / Controls
Setup of Operation Mode
Web-interface
System Power Input
Input Voltage DC
12..36 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
33 mm
Depth
98 mm
Height
114 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
5-95%
MTBF
300000 h
Dimensions
Net Weight
1 kg
Gross Weight
1 kg
