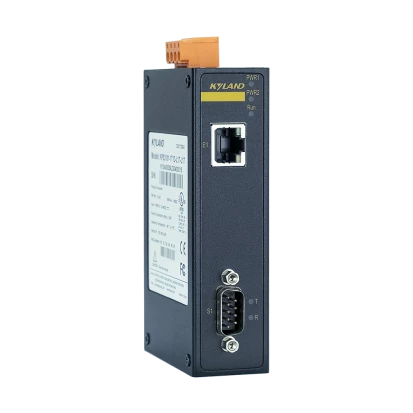

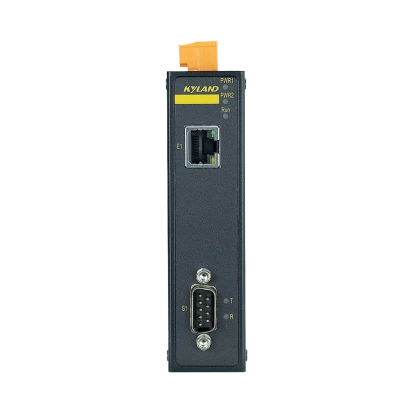

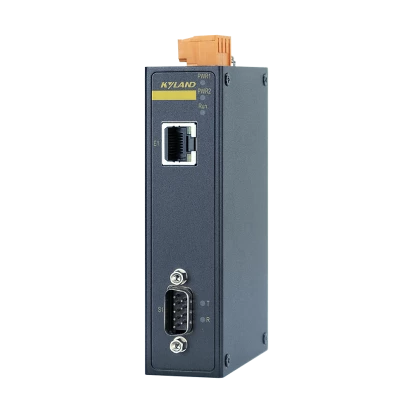

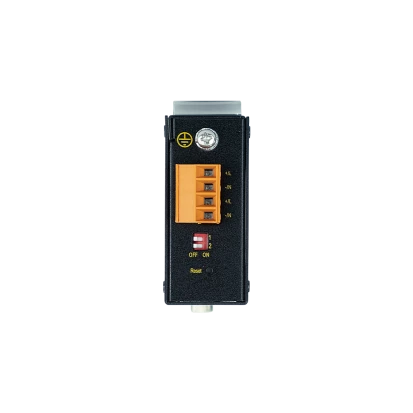

KPS3101-1T1D-L17-L17

KPS3101/3102/3204-Datasheet KPS3101 Hardware Manual

SKU: 09272600

Serial Device Server, 1 x LAN, 1 x RS-232/422/485, IP40, -40...+75C, 12-48VDC, dual power input

Price on request

Ethernet

Total Ethernet

10/100 Mbit/s

Type 10/100 Mbit/s

1xRJ-45

Interfaces

COM Total

RS-232/422/485

Isolation of COM Ports

2_kv

Supported Protocols

Security Protocols

HTTPS, SSH2

Connectors

DB9

System Power Input

Input Voltage DC

12..48 V

Power Supply Reserve input Voltage DC

12..48 V

Operating Conditions

Operating Temperature

-40..75 °C

Humidity

5-95%

Construction

Construction Chassis

Aluminium Chassis

Mounting Configuration

DIN-Rail mount

Protection Level of Chassis

IP40

Dimensions and weight

Width

30 mm

Depth

68 mm

Height

115 mm

Standards and Certifications

Certifications

CE, FCC, rohs

EMI

EN 55024, en_55032, FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6

Explosion safety

Class I Div 2

Freefall

IEC 60068-2-32

Safety

EN 60950-1, IEC 60950-1, ul61010

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

0.17 kg

Gross Weight

0.27 kg
