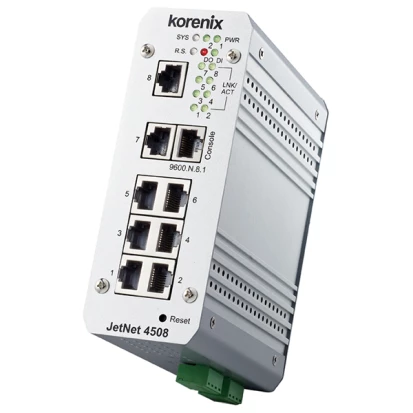

Industrial Din-rail 6TX + 2 FX single mode Managed Switch for Power substation , -40~75C
JetNet 4508if-sw
KORENIX
SKU: 66454300
Price on request
Available on order
Available on order
Ethernet
10/100 Mbit/s
8
Fiber
Type of Fibre Optic
single-mode
Interfaces
RS-232
1
Switch Properties
Managed
Yes
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Input
Total channels of digital input
1
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IPX1
Dimensions and weight
Width
55 mm
Depth
131.2 mm
Height
149 mm
Standards and Certifications
Certifications
FCC Class A
EMI
EN 55022
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
0.9 kg
Gross Weight
1 kg
