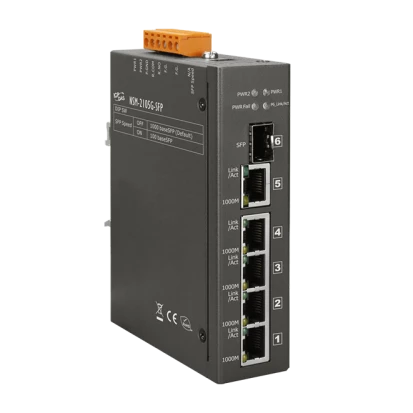

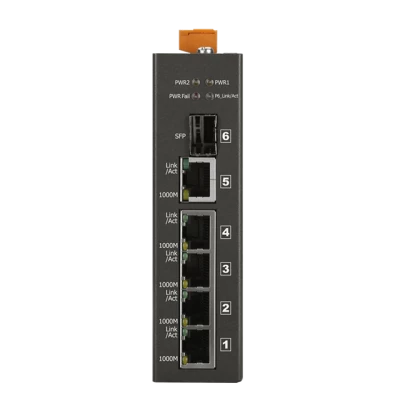

NSM-2105G-SFP
ICP DAS
SKU: 10293900

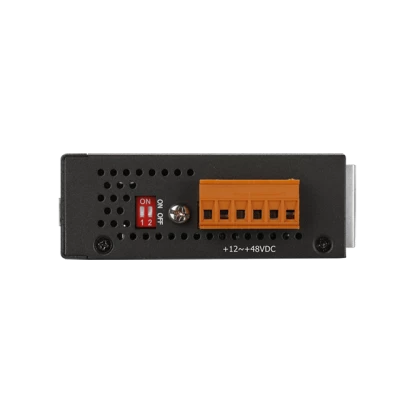

Unmanaged 5 Port GbE switch with 1 SFP slot, Dual +12-48 VDC power input and 1 Power loss alarm relay output
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
6
10/100/1000 Mbit/s
6
Type 10/100/1000 Mbit/s
5xRJ-45
SFP 100/1000 Mbit Ports
1
Switch Properties
Managed
No
Supported functions
Flow Control
MAC Table Size
4000
Packet Buffer Size
1500 kBit
Jumbo Frame Size
10 kB
Supported Protocols
IEEE Standard
ieee_802.3u, ieee_802.3ab, ieee_802.3z, ieee_802.3x
Digital Output
Total channels of digital output
1
Type
Electromagnitic relay
Contact rating of relay (Form A)
1A@30V DC
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
33 mm
Depth
131 mm
Height
100 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.27 kg
Gross Weight
0.36 kg
