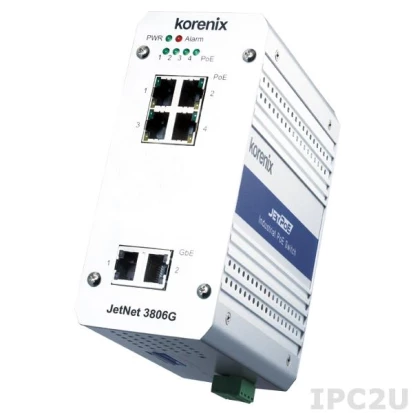

Korenix Industrial Unmanaged 4x10/100Base-TX PoE Ethernet Switch with 2x10/100/1000TX uplink Ports, DC-In 12..+24V to PoE DC-Out 48V
JetNet-3806G
KORENIX
SKU: 55226000
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
2
PoE 10/100 Mbit/s
4
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
66 mm
Depth
131.2 mm
Height
149 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.9 kg
Gross Weight
1 kg
