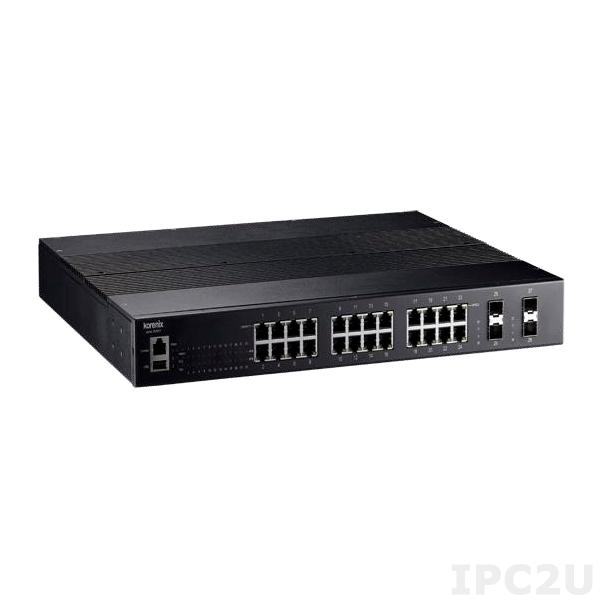

Industrial Rackmount Managed Layer 2 Ethernet Switch with 24x1000 Base TX, 4x10G SFP Ports, Modbus, Redundant 44-57VDC or 110/220VAC, -40..+75C Operating Temperature
JetNet-6628X-4F
KORENIX
SKU: 56849700
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
24
Switch Properties
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP40
Height
1 U
Dimensions and weight
Width
440 mm
Depth
378.5 mm
Height
44 mm
Standards and Certifications
EMI
EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
8.2 kg
Gross Weight
8.2 kg
