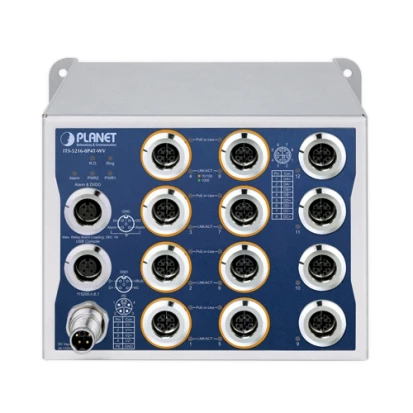

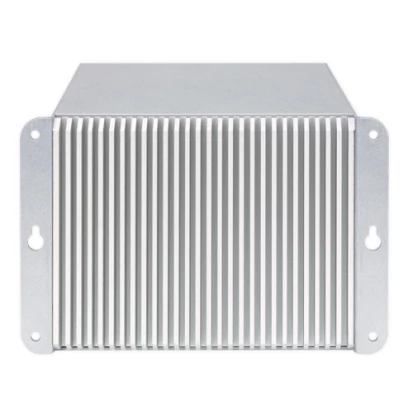

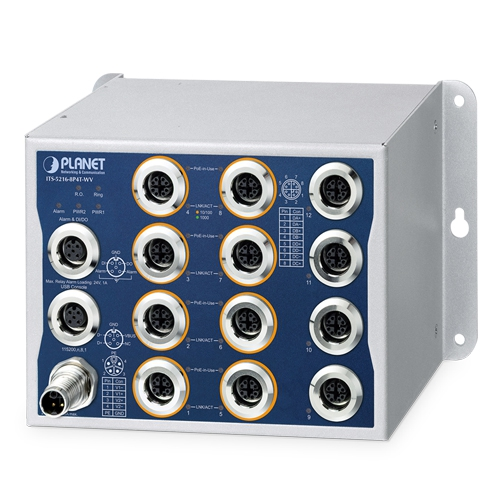

ITS-5216-8P4T-WV
Planet
SKU: 80193400
Industria Managed L2 Ethernet Switch, IP50, 12x10/100/1000Base-T M12 with 8xPoE, 1xDI/DO, Dual 24..110VDC, Operating Temperature -40..70 C
Price on request
Available
Available
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
12
Type 10/100/1000 Mbit/s
M12
PoE 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
12 kB
Supported Protocols
Managment Protocols
SMTP, HTTP, LLDP, Syslog, Telnet, SNTP, GVRP, TFTP, LACP, IGMP Snooping v1/v2/v3, IGMP Querier, DHCP Option 82
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
System Power Input
Input Voltage DC
24..110 V
Construction
Mounting Configuration
Wall
Protection Level of Chassis
IP50
Dimensions and weight
Width
176 mm
Depth
107 mm
Height
110 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
5-95%
Standards and Certifications
Certifications
FCC Class A
EMS
EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.2 kg
Gross Weight
2.7 kg
